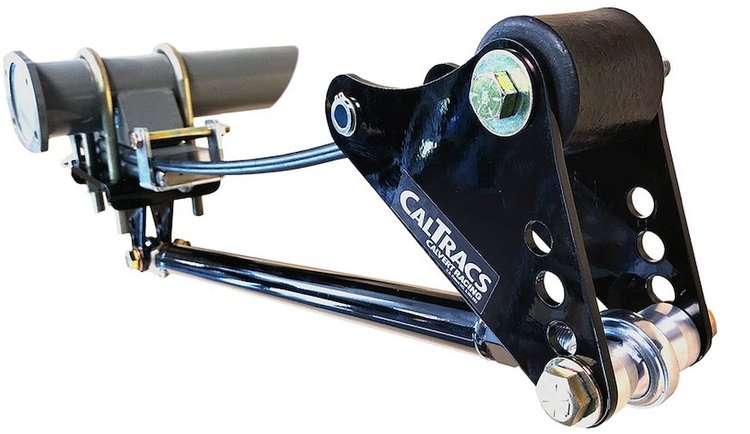

The CalTracs MX 1020-MX Traction Bar Kit is built for 1968–1974 AMC AMX and Javelin models equipped with staggered rear shocks. Designed to optimize suspension geometry under load, this MX kit provides expanded adjustability, reinforced construction, and competition-ready compliance for serious drag race tuning.

CalTracs MX 1020-MX Features:

• MX 3-Hole Adjustable Rear Mounts for fine suspension tuning
• MX 4-Hole Pivot Plates with 12 setting options
• Upgraded 9/16 in. pivot bolt hardware for added strength
• Chromoly Preload Link minimizes flex under load

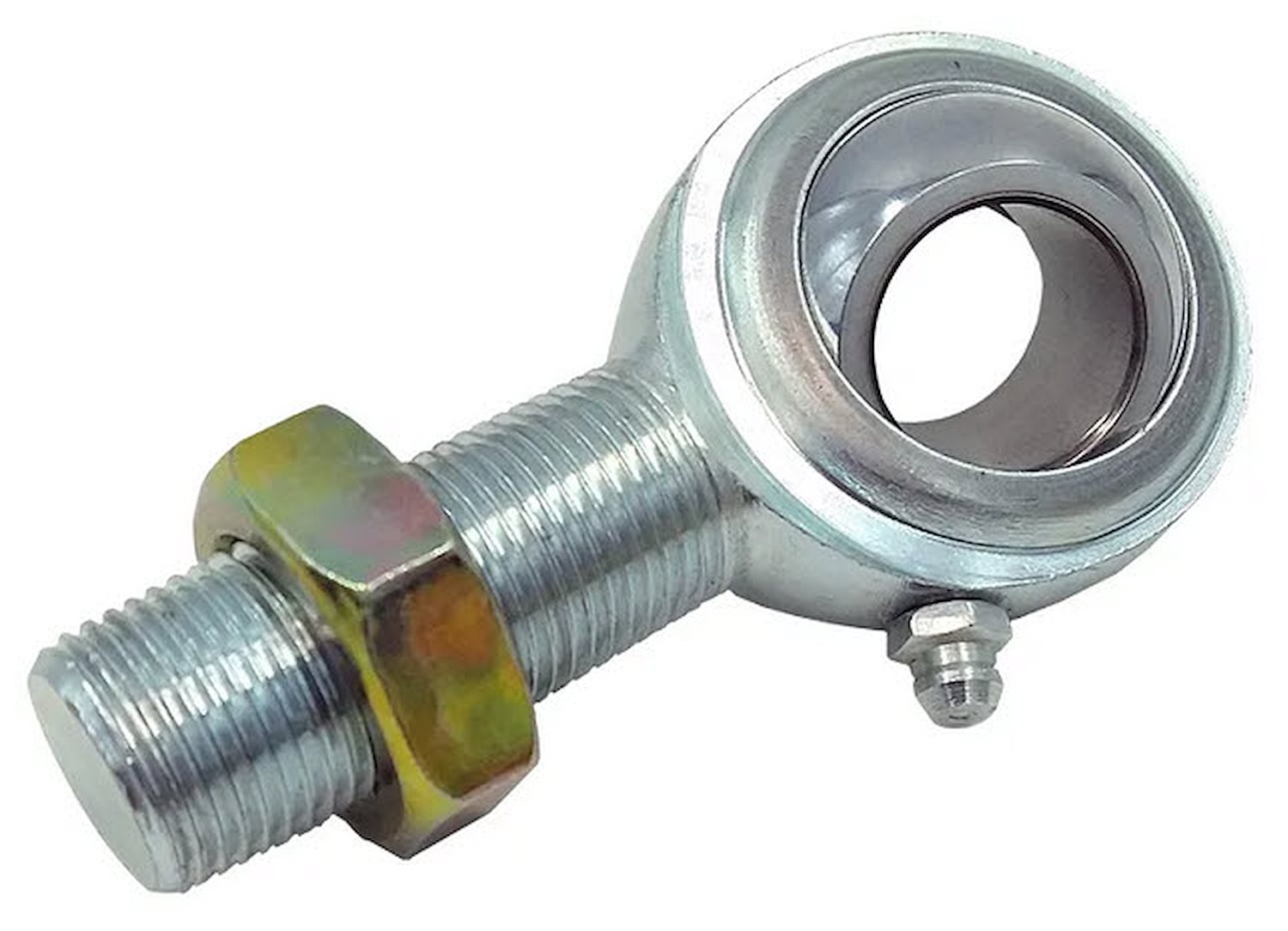

• 3/4 in. Heim Joints rated over 14,000 lbs radial static load
• Two-piece aluminum front spring eye bushing assembly
• Rear mounts constructed from 5/16 in. mild steel
• Black powder coated finish for durability
• Bolt-on installation—no welding required
• Rod Ends come pre-installed with grease zerks

CalTracs MX 1020-MX Includes:

• 2 MX Rear Mounts
• 4 MX Pivot Plates
• 4 Heim Joints/Rod Ends
• 2 Force Transfer Links
• Installation Hardware
• Full-color Installation Guide

CalTracs MX 1020-MX Notes:

• Designed for use with leaf springs and U-bolts
• U-bolts not included
• Not compatible with truck platforms
