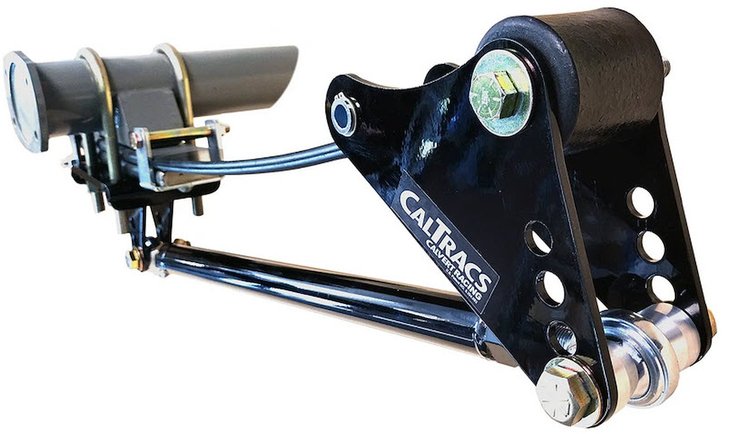

The CalTracs MX 1030-MX Traction Bar Kit is engineered for 1970–1977 AMC Hornet models with leaf spring rear suspension. Designed to optimize suspension geometry under load, the MX configuration improves traction and suspension articulation with expanded adjustment and reinforced hardware.

CalTracs MX 1030-MX Features:

• MX 3-Hole Adjustable Rear Mounts for fine suspension tuning
• MX 4-Hole Pivot Plates with 12 setting options
• Upgraded 9/16 in. pivot bolt hardware for added strength
• Chromoly Preload Link minimizes flex under load

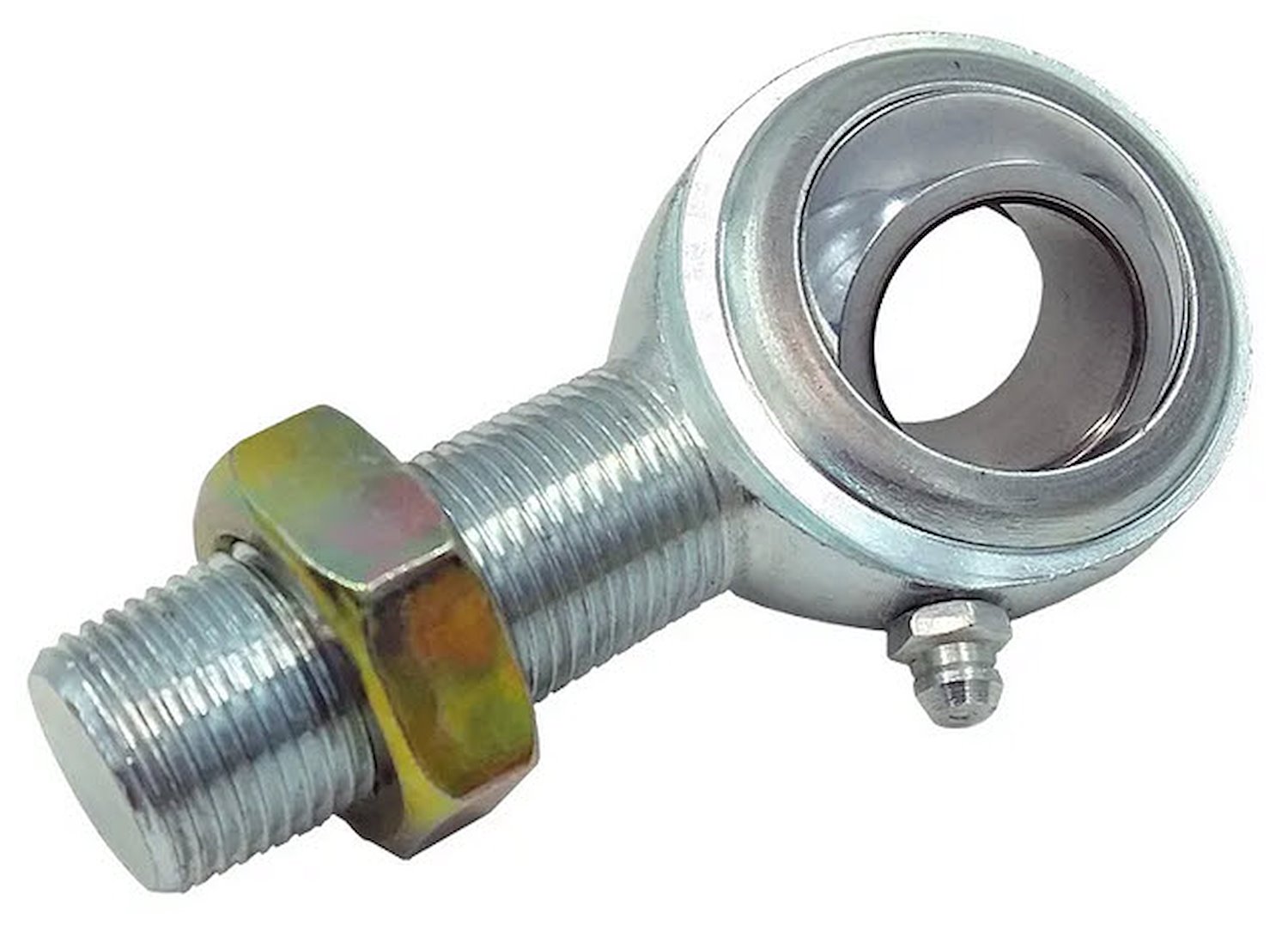

• 3/4 in. Heim Joints rated over 14,000 lbs radial static load
• Two-piece aluminum front spring eye bushing assembly
• Rear mounts constructed from 5/16 in. mild steel
• Black powder coated finish for durability
• Bolt-on installation—no welding required
• Rod Ends come pre-installed with grease zerks

CalTracs MX 1030-MX Includes:

• (2) MX Rear Mounts
• (4) MX Pivot Plates
• (4) Heim Joints/Rod Ends
• (2) Force Transfer Links
• Installation Hardware
• Full-color Installation Guide

CalTracs MX 1030-MX Notes:

• Designed for use with leaf springs and U-bolts
• U-bolts not included
• Not compatible with truck platforms
