Vehicle Info NeededCANTON RACING PRODUCTSPART NUMBER: 074-13-766

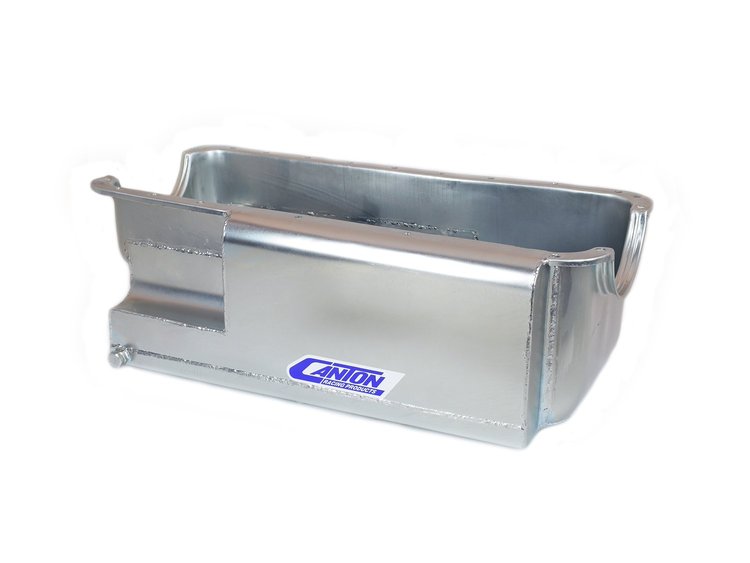

13-766 Drag Race Oil Pan Big Block Ford 429-460
$58900
Ships on 10/12/2026
Lowest Price GuaranteeBig Block Ford Oil Pans
Drag Race Oil PanBig Block Ford 429-460 Full Sump 9-Quart Capacity
Features:
- Includes (1) magnetic drain plug
- Designed for chassis without x-members or steering links under the engine

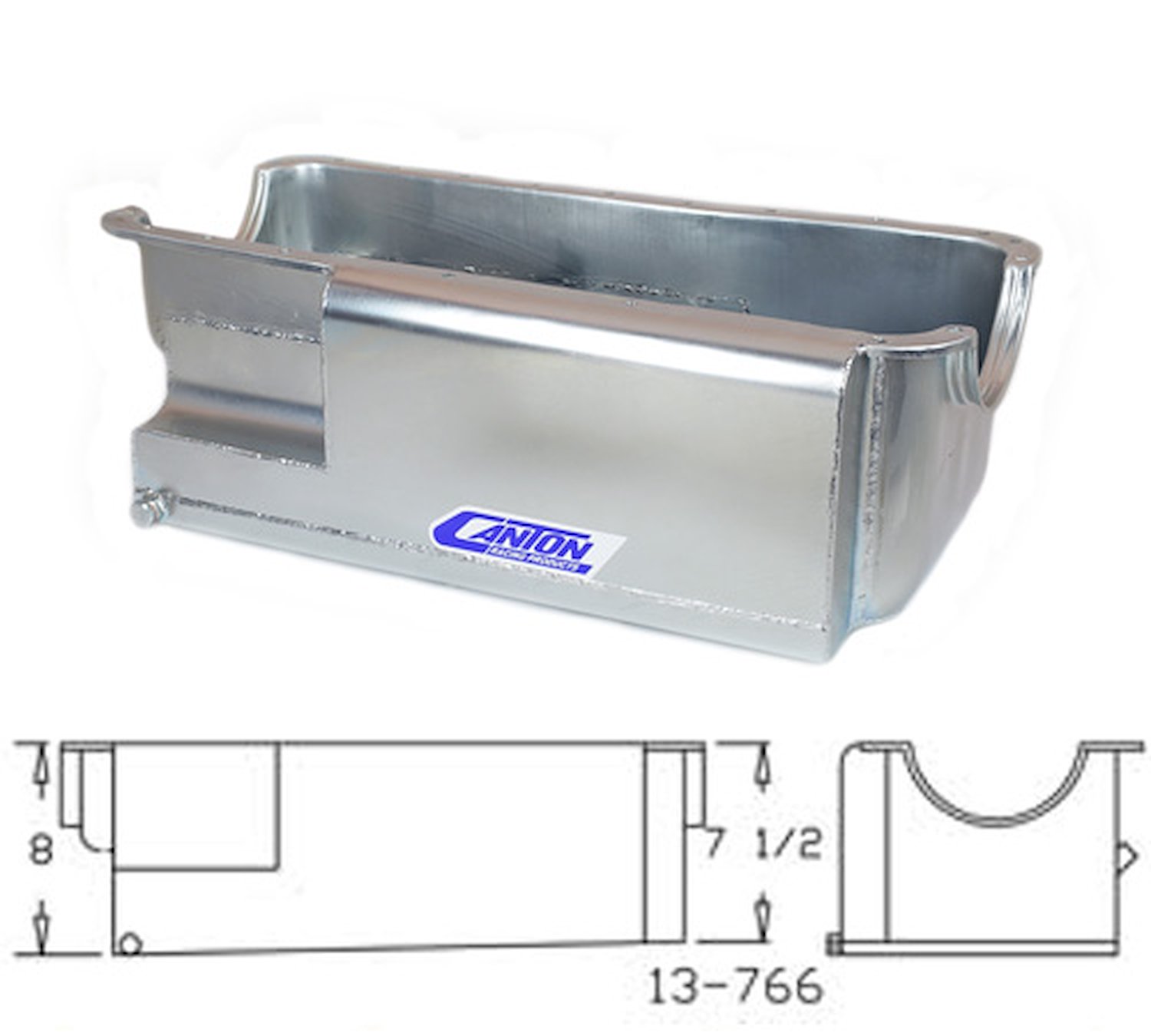

- 7-1/2 in. deep in front and 8 in. deep in the rear
- Triple-trap door baffles
- Pro-Style oil recovery pouch
- Mid-sump pickup compartment
- Provisions for pan-mounted dipstick
Notes:
- The large oil recovery pouch requires the right-side mounting bolts to be accessed through plugs in the bottom of the pan.
- Requires 074-13-769 pickup
- Recommends using Melling oil pump 689-M84DHV
- Will work with late-model stock starters
- Modifications needed for use with some aftermarket blocks
Part TypeOil Pan
BrandCANTON RACING PRODUCTS
Package Height10.0
Package Width14.0
Package Length26.0
Weight21.0 PG
Part CategoryPerformance Parts
Dipstick PortYes
UsageCompetition
Hardware IncludedNo
BaffledYes
Pickup IncludedNo
Gasket Or Seal IncludedNo
Material16 Gauge Steel
Drain Plug IncludedYes
Engine Make/SizeFord 429-460
Sump Depth8 inches
Capacity9 Quart System Capacity
Crank Scraper IncludedNo
Windage Tray IncludedNo
Part FitmentSemi Universal
Kicked OutNo
FinishSilver Plating
Vendor Part Number13-766
Package Qty1
Package TypeEA
