Vehicle Info NeededMILODONPART NUMBER: 697-31488

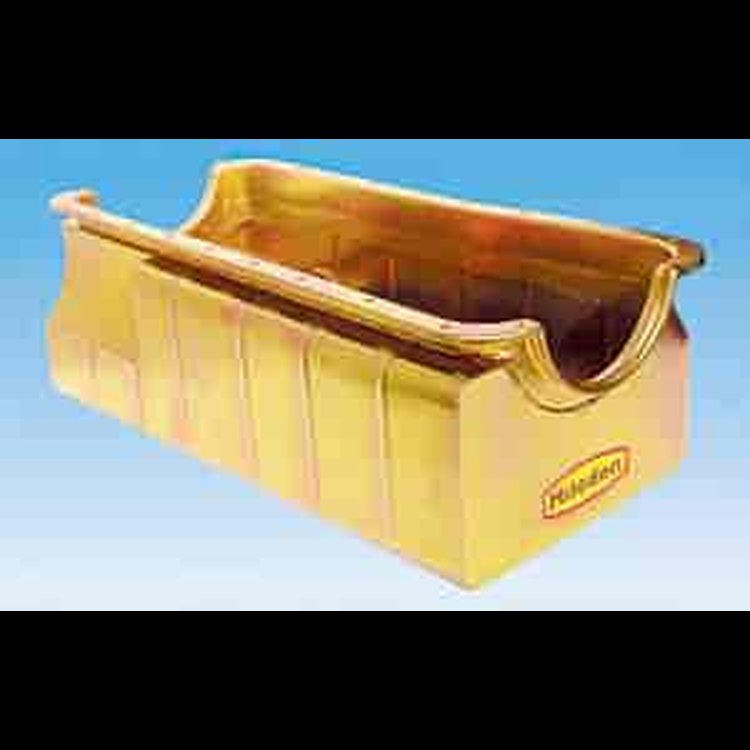

Drag Racing Oil Pan Big Block Ford 429-460
$75995
Ships on 12/31/2026
Lowest Price GuaranteeFord
- Drag Racing Oil Pan
- Big Block Ford 429-460
- Pan Capacity: 9 Quarts Plus Filter
- Front Depth: 7-1/2"
- Rear Depth: 8-1/4"
This competition style pan has been heavily used in the Comp, Super Comp, Super Gas and bracket classes. Used in Super Comp, Super Gas and like classes. This maximum power pan has a full kickout and internal crank scraper. The pan features excellent ground clearance and a quick release, louvered, full length windage tray. Double trap door assemblies control oil movement for consistent oil pressure even during shut off. Constructed from durable but light weight steel. Pick-up is rigidly braced for proper support.
Part TypeOil Pan
BrandMILODON
Package Height11.3
Package Width14.2
Package Length25.5
Weight18.6 PG
Part CategoryPerformance Parts
Oil Pan Capacity9 quarts
Hardware IncludedNo
Dipstick ProvisionNo
BaffledYes
Sump StyleWet
Pickup IncludedNo
Drain Plug Thread Size (In.)1/2-20
QuantitySold individually
Oil Pan FinishGold iridited
Kickout PositionPassenger side
Oil Pan MaterialSteel
Maximum Stroke With Oe Rod4.5 in (114.3 mm)
Gaskets IncludedNo
Oil Pan Depth8.25 in (209.6 mm)
Sump LocationFull
Crank Scraper IncludedYes
Windage Tray IncludedYes
Part FitmentSemi Universal
Kicked OutYes
Stroker ClearancedYes
Vendor Part Number31488
Package Qty1
Package TypeEA
