Vehicle Info NeededCANTON RACING PRODUCTSPART NUMBER: 074-18-302

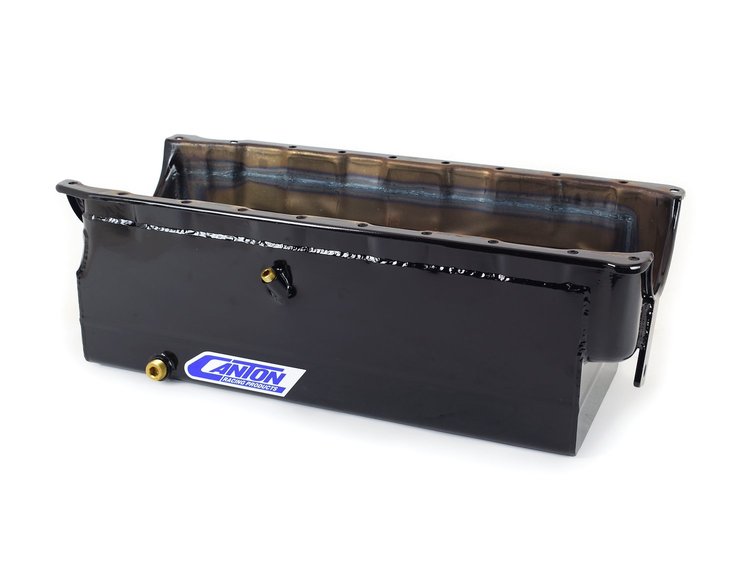

18-302 Marine Oil Pan Big Block Chevy Mark V Blocks (1-Piece Rear Seal)
$67500
Ships on Sep 04, 2026
Lowest Price GuaranteeBig Block Chevy Oil Pans
- Marine Oil Pan
- Big Block Chevy Mark V Blocks (1-Piece Rear Seal)
- High Capacity
- 9 Quarts
This high-capacity marine oil pan is for Mark V big blocks with one-piece rear seal. With a deep 8" full length sump, it holds 9 quarts of oil. Designed for applications with the pickup at the flywheel end of the engine. Requires pickup 074-18-301.Pan Features - Powdercoated 14 gauge steel
- Double Trap Door Baffles
- Removable Windage/Anti-Slosh Baffle
- 1/2" NPT Drain Fittings
- Brass Plugs
- Provision for Pan Mounted Dipstick
Part TypeOil Pan
BrandCANTON RACING PRODUCTS
Package Height10.25
Package Width14.0
Package Length26.0
Weight22.85 PG
Part CategoryPerformance Parts
Dipstick PortYes
UsageMarine
Hardware IncludedNo
BaffledYes
Pickup IncludedNo
Gasket Or Seal IncludedNo
Material14 Gauge Steel
Drain Plug IncludedYes
Engine Make/SizeChevy Gen IV
Sump Depth8 inches
Capacity9 Quart System Capacity
Crank Scraper IncludedNo
Windage Tray IncludedNo
Part FitmentSemi Universal
Kicked OutNo
FinishBlack Gloss Powdercoat
Vendor Part Number18-302
Package Qty1
Package TypeEA
