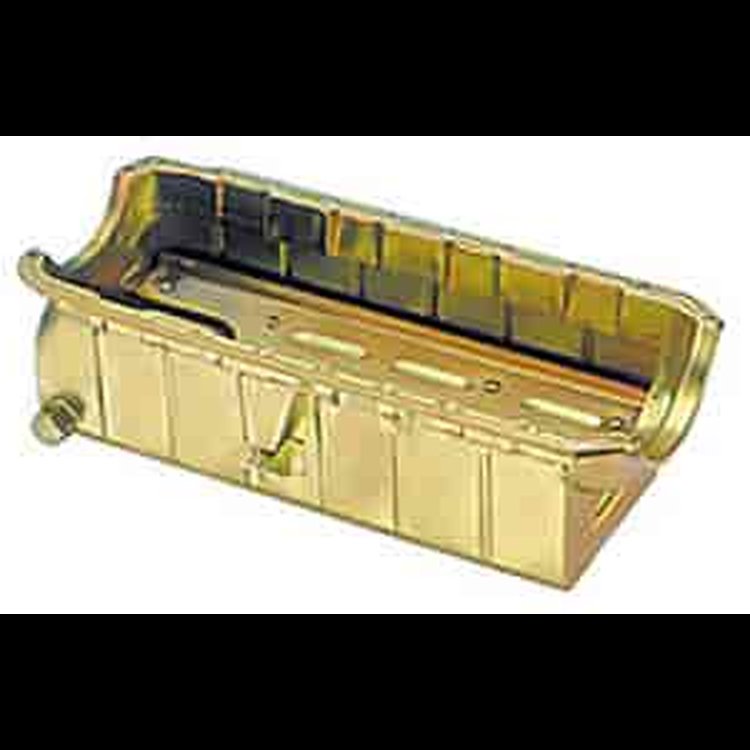

Offshore/Jet Drive Oil Pan Big Block Chevy Mark V & Gen VI
InfoVehicle Info Needed
MILODONPART NUMBER: 697-31556

Offshore/Jet Drive Oil Pan Big Block Chevy Mark V & Gen VI

$75995
2 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Offshore & Jet Drive
    Offshore/Jet Drive Oil Pan
  • Big Block Chevy Mark V & Gen VI
  • 10 Quarts & Filter
  • 7-1/2'' Sump Depth

    Requires:
  • Oil Pickup 697-18202
  • Oil Pump 697-18760

Milodon's Marine Oil Pans are specially designed for marine applications, available for Flywheel Aft and Flywheel Forward installations. These marine pans are fully baffled, trap-doored and include full length windage trays for maximum performance and oil control under severe boat handling. Pans are made from extra heavy 16 gauge steel to withstand harsh marine conditions and extreme use. A large 12AN oil drain is suitable for installing external oil drain line.

Show More

Features:

  • For Flywheel Aft and Flywheel Forward
  • Fully baffled, trap-doored and include full length windage trays
  • Extra heavy 16 gauge steel
  • Large 12AN oil drain
  • 8 quart plus filter oil capacities
Part TypeOil Pan
Product LineMilodon Marine Oil Pans
BrandMILODON
Package Height8.4
Package Width13.8
Package Length25.4
Weight19.79 PG
Part CategoryPerformance Parts
Oil Pan Capacity10 quarts
Drain Plug Thread Size-12 AN
Hardware IncludedNo
Dipstick ProvisionYes
BaffledYes
Sump StyleWet
Pickup IncludedNo
QuantitySold individually
Oil Pan FinishGold iridited
Oil Pan MaterialSteel
Maximum Stroke With Oe Rod4.5 in (114.3 mm)
Gaskets IncludedNo
Oil Pan Depth7.5 in (190.5 mm)
Rear Main Seal Style1-piece
Sump LocationFull
Crank Scraper IncludedNo
Windage Tray IncludedYes
Dipstick LocationPassenger side
Part FitmentSemi Universal
Kicked OutNo
Stroker ClearancedYes
Vendor Part Number31556
Package Qty1
Package TypeEA
