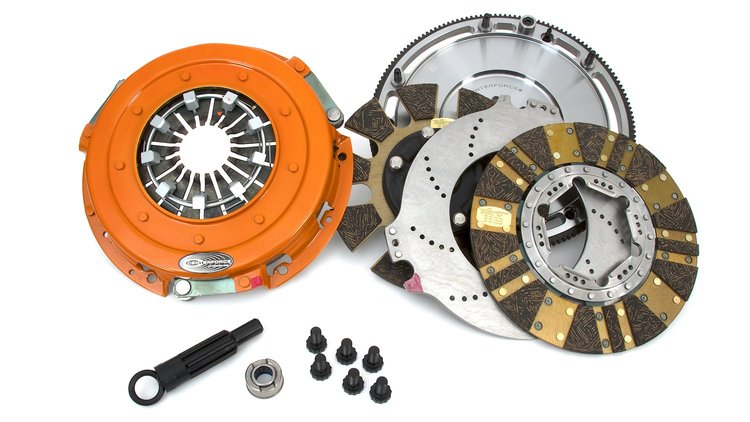

Centerforce 413215750 DYAD DS Clutch and Flywheel Kit

The Centerforce DYAD DS 10.400 in. twin disc clutch has been developed for vehicles requiring a holding capacity of 500 to 1300 ft/lbs of torque at the crank. The pressure plate features our patented centrifugal weight system for superior clamp load over stock and our patented ball bearing actuated pressure plate providing light pedal effort. The discs are equipped with organic segmented facings providing increased holding capacity and the sprung/dampened drive disc provides smooth drivability. DYAD DS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. DYAD DS clutches are match balanced and ready for installation using the included ARP fasteners.

Centerforce 413215750 DYAD DS Clutch and Flywheel Kit Features:

• Input Shaft Diameter: 1 1/16 in.
• Input Spline Quantity: 10
• Disc Material: Organic/Carbon composite
• Disc Type Sprung Solid: Sprung
• Disc Type: Segmented face
• Counterweight Assist: Yes
• Torque Capacity FTLB: 1300
• Flywheel Crank Bolt Size: 7/16 in. x 20 x 0.875 in.
• Flywheel Counter Balance Weight: 50
• Installed Height: 2.850 in.
• Flywheel Crank Flange Register: 1.751 in.
• Ring Gear O.D.: 13.294 in.

Centerforce 413215750 DYAD DS Clutch and Flywheel Kit Includes:

• Pressure Plate
• Discs

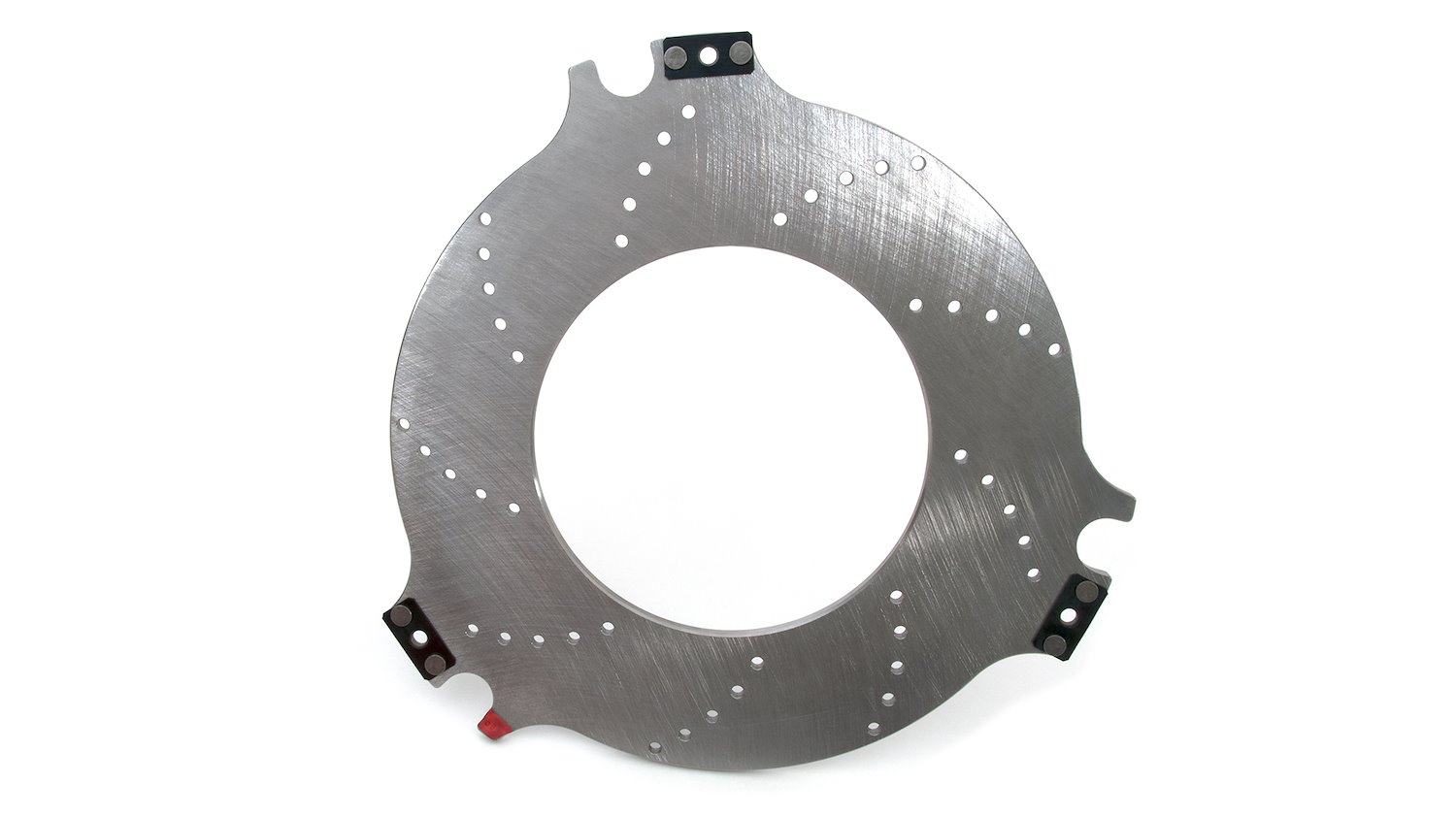

• Floater
• Flywheel
• Bolts
• Align Tool
• Pilot Bushing
