CC180-LS All-Aluminum LS Engine Swap Radiator for 1958-1984 Toyota Land Cruiser
InfoVehicle Info Needed
CHAMPION COOLING SYSTEMSPART NUMBER: 166-CC180-LS

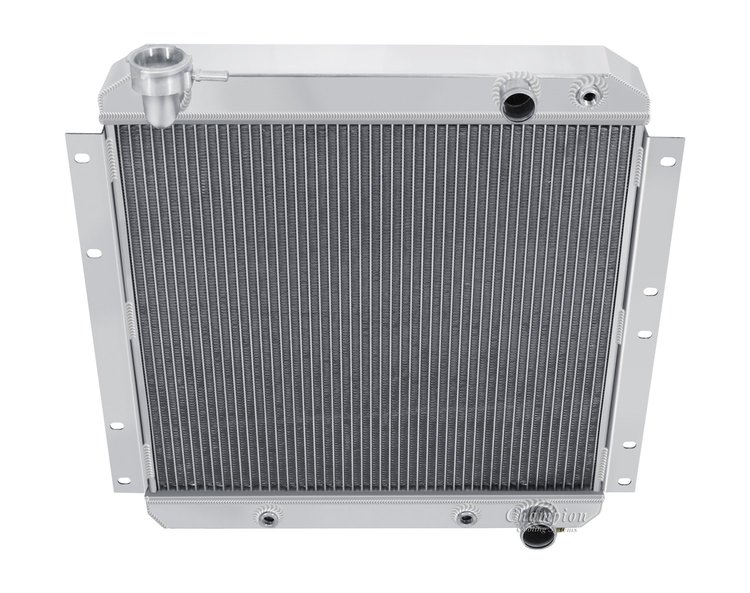

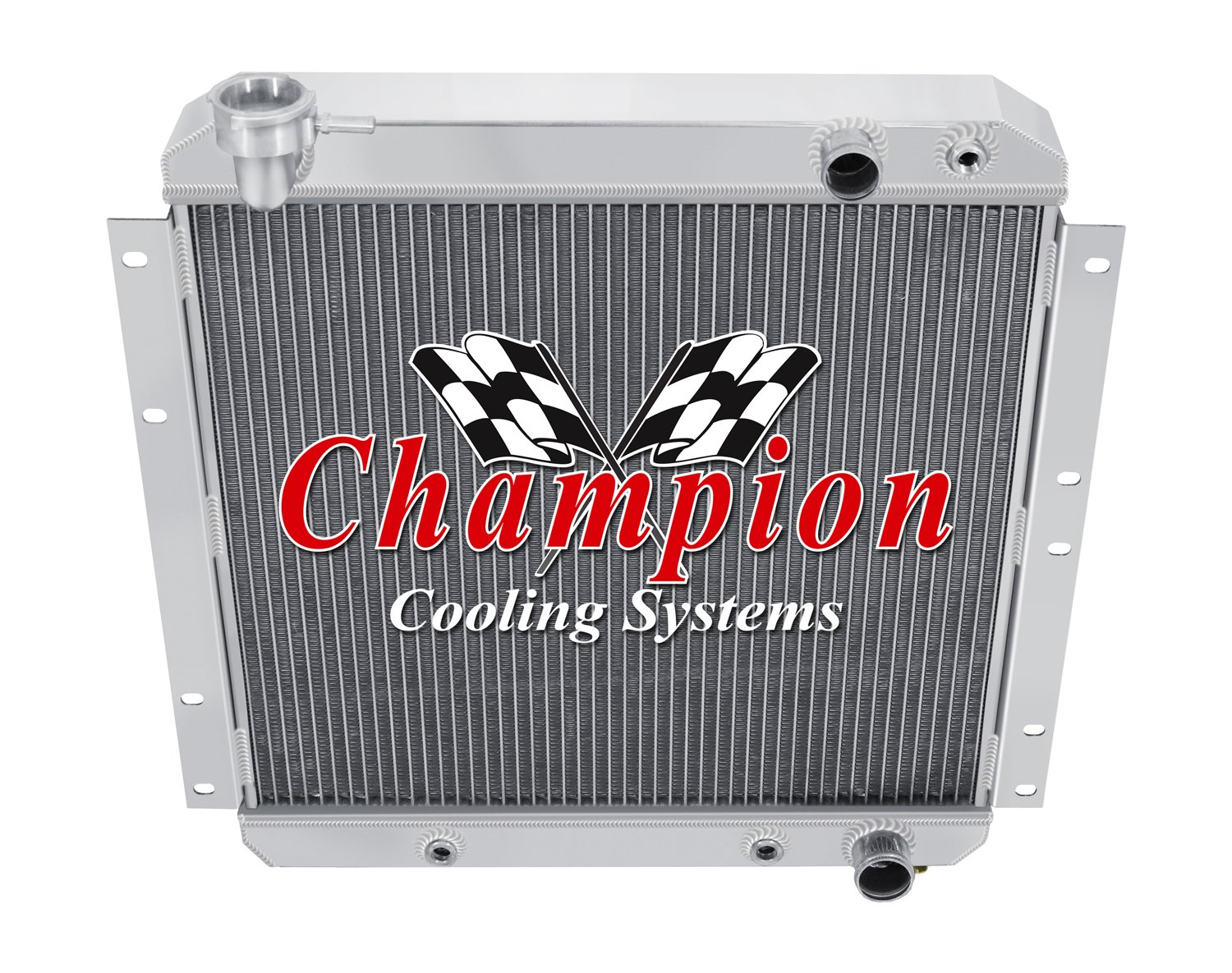

CC180-LS All-Aluminum LS Engine Swap Radiator for 1958-1984 Toyota Land Cruiser

$25499
ShippingShips on 11/24/2026
Lowest PriceLowest Price Guarantee

Items You Need

Swept-Blade 16" Electric Cooling Fan

CHAMPION COOLING SYSTEMS

Swept-Blade 16" Electric Cooling Fan

Part Number : 166-CCFK16
$7599
Universal HD Electric Reversible Cooling Fan [16 in. Diameter S-Blade]

JEGS

Universal HD Electric Reversible Cooling Fan [16 in. Diameter S-Blade]

Part Number : 555-52110
$15799$171.99
You Save$14.00
Single Electric Fan Wiring Harness & Relay Kit 30 Amp [185 degrees on 170 degrees off]

JEGS

Single Electric Fan Wiring Harness & Relay Kit 30 Amp [185 degrees on 170 degrees off]

Part Number : 555-10560
$4899$53.99
You Save$5.00
Manual-Controlled Single Fan Wiring Harness & Relay Kit 30 Amp

JEGS

Manual-Controlled Single Fan Wiring Harness & Relay Kit 30 Amp

Part Number : 555-10559
$3199$34.49
You Save$2.50

Toyota
All Aluminum Radiator
  • 1958-1984 Toyota Land Cruiser With LS Engine
  • Champion Core 3-Row

    Dimensions for Champion Cooling Radiator CC180-LS

    Champion Cooling Systems CC180-LS All Aluminum Radiator for Select Chevrolet & GMC Pickup Trucks, SUVs Features:

    • Includes (1) 13 lb. radiator cap
    • 100-percent tig-welded construction with brazed-core technology
    • 2 mm thick aluminum end tanks and fittings
    • All-billet filler neck
    • OEM-style brass petcock drain
    • 3/8 in. spaced cooling tubes
    • Max Cool louvered technology with 14-16 fins per inch
    • Bracket mounting style
    • Stay Cool with Champion Core Radiators

      Champion 3-Row Aluminum Radiators utilize brazed-core technology to ensure the highest quality tubing that provides sufficient cooling capacity for approximately 600 to 800-plus horsepower vehicles. Each direct-fit radiator is built with all-welded seams (without epoxy) and comes complete with a standard radiator cap.

      Show More

      When you’re building a vehicle for high performance, you need to build the entire package, and that includes an upgraded cooling system. A 3 row aluminum radiator is a great upgrade for more efficient and robust cooling capacity, and Champion is the right place to find them.

      Not all radiators are created equal. Champion’s 3 row radiators feature the highest quality tubing and fins and brazed-core technology; they’re designed for a precise drop-in fit and are built without seams or epoxy. With fitments for vehicles from the 70s all the way back to the 30s, Champion radiators are a perfect choice for a restomod project (and if there’s one weak link in vehicles from the 60s and older, it’s their radiators and cooling systems). Cooling systems for select models include all components – the radiator, shroud, dual electric fans, pigtail, controller and all necessary wiring. An electric fan also has the added benefit of reducing parasitic drag on the engine by eliminating a belt-driven fan.

      Champion radiators are also designed with transmission cooler connections, and all are vehicle specific to easily fit with radiator core supports for a true drop-in installation. Champion radiators are designed to deliver cooling capacity for engines up to 600-800 horsepower.

    Part TypeRadiator
    Product LineChampion 3-Row/Core Aluminum Radiators
    BrandCHAMPION COOLING SYSTEMS
    Package Height4.0
    Package Width24.0
    Package Length24.0
    Weight19.0 PG
    Overall Thickness2.75 in (69.9 mm)
    Overall Height22.125 in.
    Radiator Cap IncludedYes
    Inlet LocationPassenger
    Inlet Size (In.)1 1/4
    Core Width19.25 in.
    Row Quantity3
    Core MaterialAluminum
    Overall Width22.125 in.
    Inlet Diameter1.25 in.
    Down Flow Or Cross Flow TypeDown Flow
    Radiator FinishNatural
    Transmission Cooler1/2-20 straight, inverted flare
    Tank MaterialAluminum
    Core Row Quantity3 Row
    Radiator StyleDownflow
    Outlet Size1 1/2 in.
    Radiator MaterialAluminum
    Transmission Oil Cooler Fitting Type1/2-20 Straight Thread, Inverted Flare
    Outlet Diameter1.5 in.
    QuantitySold individually
    Mounting Hardware IncludedNo
    Internal Transmission Oil CoolerYes
    3 Row Core Thickness2.25
    Mounting TypeBracket
    Core Height17.125 in.
    Core Thickness2.25 in.
    Outlet LocationPassenger
    Radiator TypePerformance Replacement
    Vendor Part NumberCC180-LS
    Package Qty1
    Package TypeEA
