Aluminum Radiator System 1970-1972 Duster/Dart
InfoVehicle Info Needed
CHAMPION COOLING SYSTEMSPART NUMBER: 166-CC526K

Aluminum Radiator System 1970-1972 Duster/Dart

$64729
ShippingShips on 12/04/2026
Lowest PriceLowest Price Guarantee

Items You Need

16705 Service Pro Antifreeze Concentrate [1 gallon]

GLOCKNER OIL

16705 Service Pro Antifreeze Concentrate [1 gallon]

Part Number : 708-16705
$1999
Convoluted Tubing 1/2" x 15"

JEGS

Convoluted Tubing 1/2" x 15"

Part Number : 555-10662
$989$10.99
You Save$1.10
Stainless Steel Radiator Hose Kit Natural/Polished

JEGS

Stainless Steel Radiator Hose Kit Natural/Polished

Part Number : 555-511233
$11999$149.99
You Save$30.00
Wire Crimping Pliers and Stripping Tool

JEGS

Wire Crimping Pliers and Stripping Tool

Part Number : 555-80575
$1399$15.99
You Save$2.00

Mopar

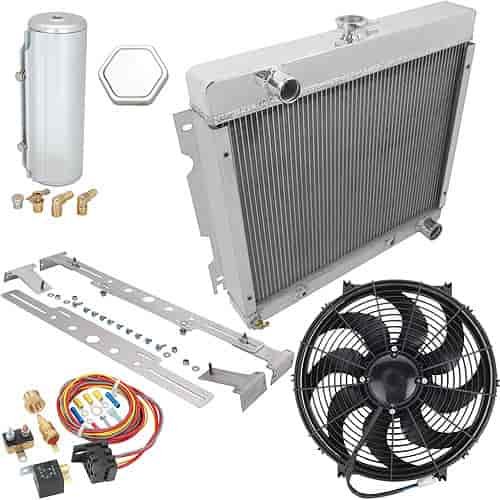

    Aluminum Radiator System
  • 1970-1972 Duster/Dart (22" Core)
    Includes:
  • 3-Row Radiator
  • S-Blade 16" HD Electric Fan
  • Billet Fan Mounting Kit
  • Billet Recirculating Tank/Overflow Can
  • 16lb Radiator Cap
  • Fan Wiring Harness & Relay Kit

    Kit Includes:
  • Champion Core 3 Row Radiator - p/n 166-CC526
  • JEGS S-Blade 16" Universal HD Electric Cooling Fan - p/n 555-52110
  • JEGS Electric Fan Billet Mounting Kit - p/n 555-52120

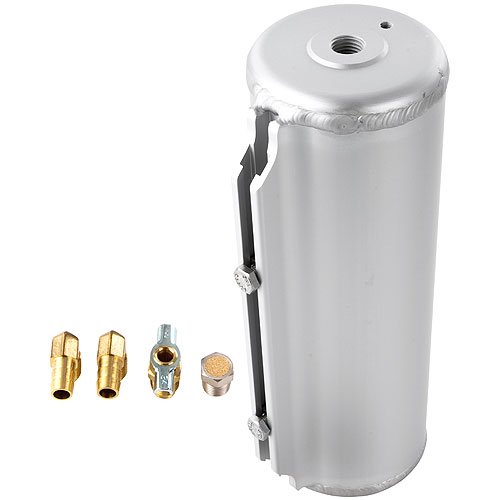

  • JEGS Billet Round Recirculating/Overflow Tank/Catch Can - p/n 555-51135
  • JEGS Upgraded Polished 16lb Radiator Cap - p/n 555-51162
  • JEGS Temp-Controlled Single Fan Wiring Harness & Relay Kit - p/n 555-10560

    Radiator Specifications:
    Core Dimensions: 17" (H) x 22" (W)
    Overall Dimensions:21-5/8" (H) x 25" (W)
    Hose Locations: Inlet: Driver Side
    Outlet: Passenger Side
    Hose Fittings: Inlet: 1-1/2"
    Outlet: 1-3/4"
    Transcooler: 1/8-27 NPT Thread
    Mount Type: Bracket

    Stay Cool with Champion Core Radiators

    Champion 3-Row Aluminum Radiators utilize brazed-core technology to ensure the highest quality tubing that provides sufficient cooling capacity for approximately 600 to 800-plus horsepower vehicles. Each direct-fit radiator is built with all-welded seams (without epoxy) and comes complete with a standard radiator cap.

    Show More

    When you’re building a vehicle for high performance, you need to build the entire package, and that includes an upgraded cooling system. A 3 row aluminum radiator is a great upgrade for more efficient and robust cooling capacity, and Champion is the right place to find them.

    Not all radiators are created equal. Champion’s 3 row radiators feature the highest quality tubing and fins and brazed-core technology; they’re designed for a precise drop-in fit and are built without seams or epoxy. With fitments for vehicles from the 70s all the way back to the 30s, Champion radiators are a perfect choice for a restomod project (and if there’s one weak link in vehicles from the 60s and older, it’s their radiators and cooling systems). Cooling systems for select models include all components – the radiator, shroud, dual electric fans, pigtail, controller and all necessary wiring. An electric fan also has the added benefit of reducing parasitic drag on the engine by eliminating a belt-driven fan.

    Champion radiators are also designed with transmission cooler connections, and all are vehicle specific to easily fit with radiator core supports for a true drop-in installation. Champion radiators are designed to deliver cooling capacity for engines up to 600-800 horsepower.

Part TypeRadiator Module Kit
Product LineChampion 3-Row/Core Aluminum Radiators
BrandCHAMPION COOLING SYSTEMS
Part FitmentDirect Fit
Package Qty1
Package TypeEA
