Chassis Engineering AS-2030 Features:

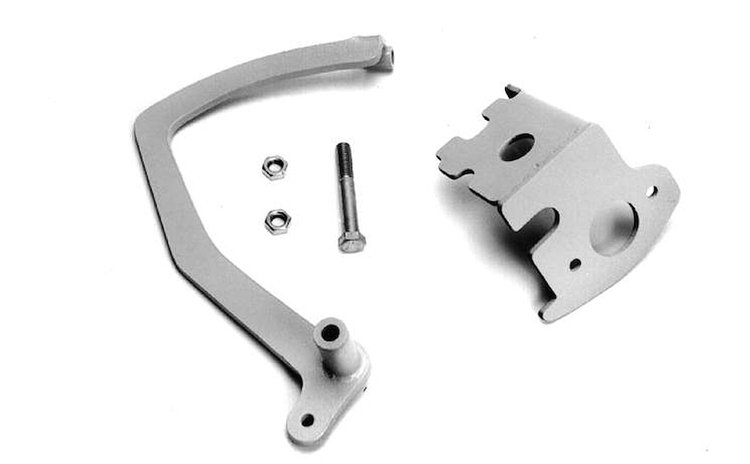

AS-2030 Brake Pedal Kit for 1928-1931 Ford

Our new brake pedal kit fits Model €œA€ frames and welds to the side of a boxed rail. Works well with boxed or reproduction frames. This kit uses Pinto-Mustang (Ford bolt pattern) master cylinder and others by filling in the holes. Will not accept power booster.

Includes:

Pedal
Weld on frame brackets
Pivot bolt
Frame anchor
Instructions

Installation Instructions for AS-2030 Weld-on Brake Pedal Bracket for 1928-1931 Ford

1. Drill 7/8 in. hole on inside of frame (drivers side) according to location given

2. Locate weld on bracket with 1/2 in. bolt centered in hole. Tack-weld bracket in place.

3. Insert bolt through bracket. Thread both 1/2 in. nuts on bolt and place in hole with the first nut fitting mostly in the hole. Tack weld first nut in place.

4. Double check all measurements. Remove bolt and weld bracket and nut on.

Note: Pedal linkage is not included and must be fabricated.

Keep in mind that while our parts are created with the highest quality, it is up to the actual installer to make sure that all brake components work properly together and without rubbing, dragging or other clearance issues.
