Vehicle Info NeededCHASSIS ENGINEERING INC.PART NUMBER: 141-CP-1105

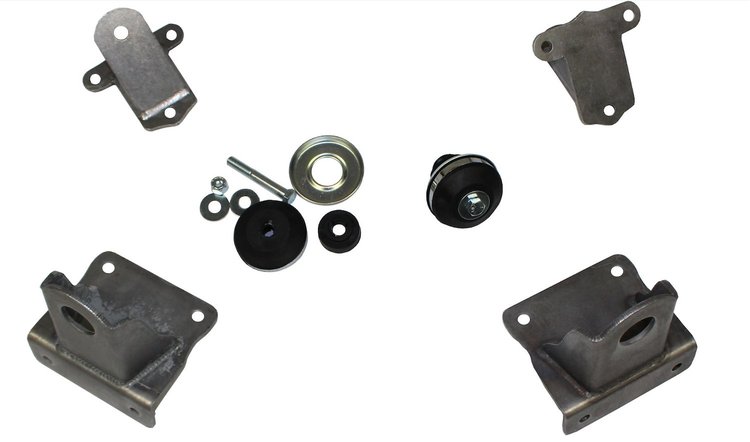

CP-1105 1934-1935 Chevrolet Standard Small Block Chevy Engine Mounting Kit
$21500
Ships on 09/11/2026
Lowest Price GuaranteeGM
- 1934-1935 Chevrolet Standard Small Block Chevy Engine Mounting Kit
- Chevy V8, 1958-up : 283, 302, 307, 327, 350, 400 CI Small Block
- Chevy V6 with the distributor at rear
- CP-1105 Mounting kit for 1934-1935 Chevrolet Standard
- CP-1114 Mounting Kit for 1936 Chevy Standard with cross steering
- CP-1115 Mounting Kit for 1936 Chevy Standard with Chassis Engineering or other Pinto Mustang IFS
Chassis Engineering CP-1105 Features:
Includes bolt-on frame adapters, thru bolt cushion set, Chassis Engineering engine side mounts, bolts and instructions
Engine mounts fit:
Product Variants:
Installation Instructions for CP-1105 Chevy Small Block Turbo350 and PowerGlide Engine Mounting Kit for 1934-1935 Chevy Standard
Note: not for Big Block Chevy, Turbo 400 or overdrives.
This part is commonly ordered together with the ES-1150 Transmission Mounting Plate, so we included instructions for both the engine mounting kit and the transmission mount.
Engine Installation (CP-1105)
1. Bolt engine mounts to the small block Chevy engine to be installed.
2. Install frame adapters around frame and clamp in position shown. Make sure adapters are straight and level.
3. Drill bolt holes in frame, then install and tighten bolts.
4. Install cushion set as shown below (note, image is for indication purposes, your parts look slightly different)
Transmission Mount Installation (seperate part, ES-1150)
1. Remove original transmission support.
2. Line up two front holes with original crossmember holes.
3. Drill and bolt new transmission mount in place.
Notes:
Original steering can be used by moving it back on the frame.
Driveshaft clearance is minimal where it passes through X-member center. When car is sitting in final position, this clearance should be checked.
Transmission can be raised for driveshaft clearance by installing spacers under rubber mount.
Part TypeEngine Mount
BrandCHASSIS ENGINEERING INC.
Package Height4.0
Package Width5.0
Package Length7.0
Weight5.0 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part NumberCP-1105
Package Qty1
Package TypeEA
