Vehicle Info NeededCHASSIS ENGINEERING INC.PART NUMBER: 141-CP-1106GB

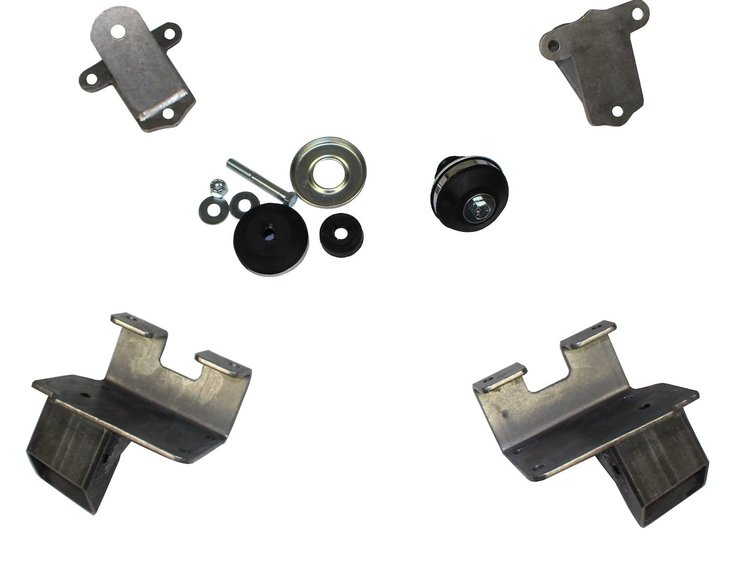

CP-1106GB 1940 Chevy Small Block Chevy Engine Mounting Kit With CE IFS
$36000
Ships on Sep 14, 2026
Lowest Price GuaranteeGM
- 1940 Chevy Small Block Chevy Engine Mounting Kit With CE IFS
- Bolt-on frame adapters
- Chassis Engineering engine mounts
- Thru bolt cushion set
- Hardware and instructions
- Chevy V8, 1958-up : 283, 302, 307, 327, 350, 400 CI Small Block
- Chevy V6 with the distributor at rear
- CP-1106 Mounting Kit for 1940 Chevy with Solid Axle
- CP-1106A Mounting Kit for 1940 Chevy with original IFS
- CP-1106G Mounting Kit for 1940 Chevy with non-Chassis Engineering IFS
- CP-1106GB Mounting Kit for 1940 Chevy with Chassis Engineering IFS
Chassis Engineering CP-1106GB Features:
CP-1106GB Small Block Chevy V8 Engine Mounting Kit for 1940 Chevy with CE IFS
Bolt-On Engine Kit fits 1958-up small block V8 into 1940 Chevy car using the Chassis Engineering famous Bolt-on P/M IFS
Engine mounts fit:
Product Variants:
Installation Instructions for CP-1106GB Small Block Chevy Engine Swap Kit for 1940 Chevy Car using Chassis Engineering Bolt-On IFS
Installing the engine goes hand in hand with the transmission. Since both CP-1106GB Engine Mount Kit and ES-1170 Transmission Mount are often used together, the instructions below will cover both.
1. Remove original engine, transmission and rear end. Remove transmission cover in floor for access. Remove original small-center transmission mount by drilling out the four rivets.
As you progress you will find other odd pieces that will need to be removed for clearance and fit. Remove these as needed.
2. (Engine Mounting) Slip both the frame adapters over the frame and locate as shown below.
3. (Transmission Mounting) Install mounting plate by locating it over the four holes you already drilled. Check centering, clamp in place and ream-drill holes to 3/8". Bolt together. Drill the two center holes through top and bottom of the original crossmember (1/2"). From underneath, drill the exit holes to 7/8" for socket clearance.
4. At this point we suggest setting the engine in place to check mounting.
5. (Engine) Now drill holes through frame adapters and install bolts. Do not over tighten. (If desired, frame adapters can be welded in place, but this isn't needed or recommended).
6. Floor board cover may need modification for clearance. Check while reinstalling cover and finish as needed. This depends on the transmission you are using.
Part TypeEngine Mount
BrandCHASSIS ENGINEERING INC.
Package Height6.0
Package Width6.0
Package Length12.0
Weight10.0 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part NumberCP-1106GB
Package Qty1
Package TypeEA
