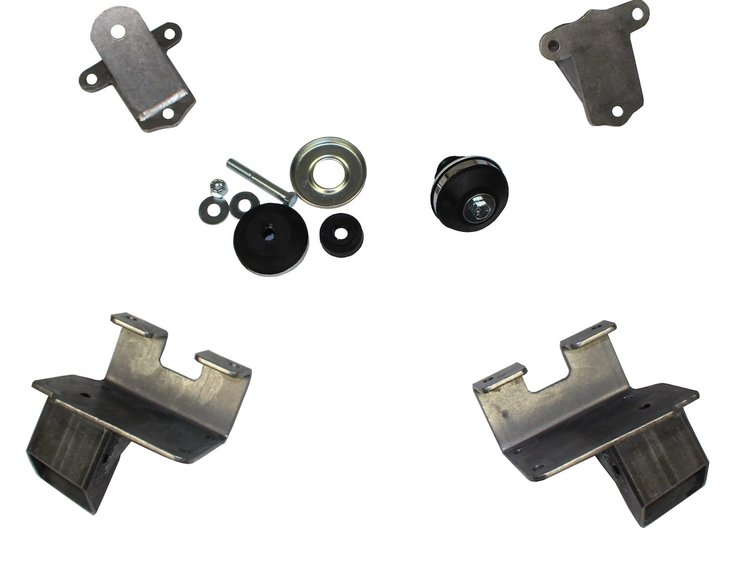

Vehicle Info NeededCP-1107G 1941-1948 Chevy Small Block Chevy Engine Mounting, With IFS
Ships on 11/04/2026
Lowest Price Guarantee- 1941-1948 Chevy Small Block Chevy Engine Mounting, With IFS
- Bolt-on frame adapters
- Chassis Engineering engine mounts
- Thru bolt cushion set
- Hardware and instructions
- Chevy V8, 1958-up : 283, 302, 307, 327, 350, 400 CI Small Block
- Chevy V6 with the distributor at rear
- CP-1107 Mounting Kit for 1941-1948 Chevy with original IFS
- CP-1107G Mounting Kit for 1941-1948 Chevy with (Chassis Engineering or other Pinto Mustang) IFS
Chassis Engineering CP-1107G Features:
Bolt-On Engine Kit fits 1958-up small block V8 into 1941-48 Chevy car using Chassis Engineering Bolt-on IFS or other P/M IFS
Engine mounts fit:
Product Variants:
Installation Instructions for CP-1107 Small Block Chevy Engine Swap Kit or 1941-1948 Chevy Car using Pinto-Mustang/Chassis Engineering IFS
Installing the engine goes hand in hand with the transmission. Since both CP-1107 Engine Mount Kit and ES-1170 Transmission Mount are often used together, the instructions below will cover both.
1. Remove original engine, transmission and rear end. Remove transmission cover in floor for access. Remove original small-center transmission mount by drilling out the four rivets.
As you progress you will find other odd pieces that will need to be removed for clearance and fit. Remove these as needed.
2. (Engine Mounting) Slip both the frame adapters over the frame and locate as shown below.
3. (Transmission Mounting) Install mounting plate by locating it over the four holes you already drilled. Check centering, clamp in place and ream-drill holes to 3/8". Bolt together. Drill the two center holes through top and bottom of the original crossmember (1/2"). From underneath, drill the exit holes to 7/8" for socket clearance.
4. At this point we suggest setting the engine in place to check mounting.
5. (Engine) Now drill holes through frame adapters and install bolts. Do not over tighten. (If desired, frame adapters can be welded in place, but this isn't needed or recommended).
6. Floor board cover may need modification for clearance. Check while reinstalling cover and finish as needed. This depends on the transmission you are using.
Chassis Engineering Engine Mounts For Street Rod, Hot Rod, And Custom Motor Installations
Chassis Engineering Engine Mounts are designed to provide secure, reliable engine placement for classic car restorations, hot rod projects, and custom street rod builds. Built for popular GM, Ford, and Mopar engine applications, these precision-crafted mounts help ensure proper drivetrain alignment, reduced vibration, and dependable chassis support during high-performance driving. Manufactured from durable steel for long-lasting strength and easy installation, Chassis Engineering motor mounts are a trusted choice for engine swap enthusiasts seeking quality aftermarket mounting solutions and professional-level fitment.
