    1949-1954 Chevy Small Block Engine Mounting Bolt On Kit

    Chassis Engineering CP-1109 Features:

    CP-1109 Small Block Chevy V8 Motor Mount Kit for 1949-1954 Chevy for use with with original front suspension

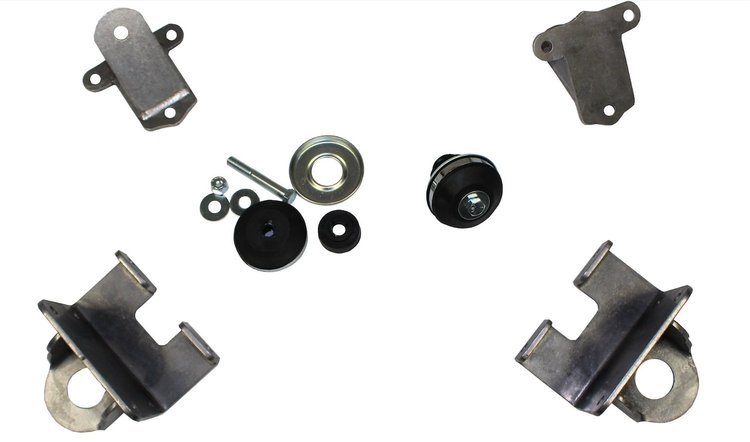

    CP-1109 SBC Mount Kit includes:

  • bolt on frame adapters

  • Chassis Engineering engine mounts

  • Thru Bolt Cushion set

  • Hardware

  • instruction


  • These motor mounts fit the following engines:

  • Chevy V8, 1958-up : Chevy 283, Chevy 302, Chevy 307, Chevy 327, Chevy 350, Chevy 400 CI Small Block

  • Chevy V6 with the distributor at rear


  • Small Block Chevy Motor Mount Kit Variants:

  • CP-1109 small block Chevy motor mount kit for 1949-1954 Chevy with original suspension

  • CP-1109G small block Chevy motor mount kit for 1949-1954 Chevy with Chassis Engineering Mustang II IFS Suspension

  • CP-1109PM small block Chevy motor mount kit for 1949-1954 Chevy with other (non-Chassis Engineering) Mustang II IFS Suspension


  • Easy to install use this kit with original front suspension. Weld on kits include adapters, mounts, Thru bolt cushion sets, and instructions.


    For use with CP-1109 Small Block Chevy V8 Motor Mount Kit for 1949-1954 Chevy.



    Chassis Engineering Installation Instructions for SBC Motor Mount Kit for 1949-1954 Chevy



    1. Remove original engine, transmission and rear end. Remove transmission cover in floor for access.

    2. Cut the two braces from inside of frame rails that interfere with engine mounting. As you progress, you will find other odd pieces that will need to be removed/trimmed for clearance and fit.

    3. (Engine Mounting) Slip both the frame adapters over the frame and locate as shown below.

Part TypeEngine Mount
BrandCHASSIS ENGINEERING INC.
Package Height6.0
Package Width6.0
Package Length12.0
Weight9.0 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part NumberCP-1109
Package Qty1
Package TypeEA
