Vehicle Info NeededCHASSIS ENGINEERING INC.PART NUMBER: 141-CP-1109PM

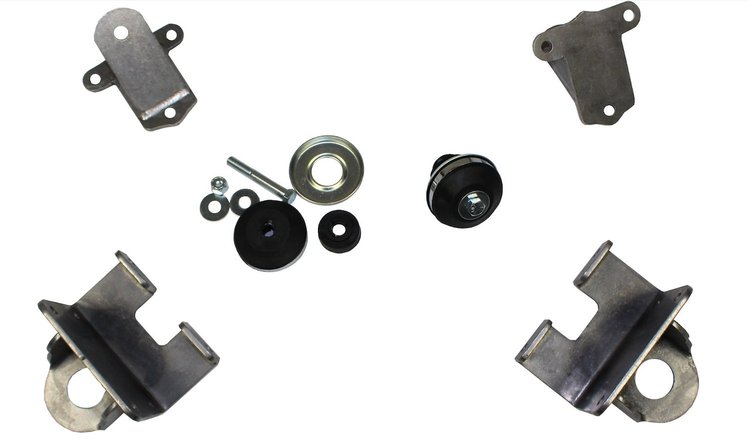

CP-1109PM 1949-1954 Chevy Small Block Chevy Engine Mounting Kit (Non-CE weld-On IFS)
$22600
Ships on 09/14/2026
Lowest Price GuaranteeGM
- 1949-1954 Chevy Small Block Chevy Engine Mounting Kit (Non-CE weld-On IFS)
- Bolt on frame adapters
- Chassis Engineering engine mounts
- Thru Bolt Cushion set
- Hardware
- Instructions
- Chevy V8, 1958-up : 283, 302, 307, 327, 350, 400 CI Small Block
- Chevy V6 with the distributor at rear
- CP-1109 Mounting Kit for 1949-1954 Chevy with original suspension
- CP-1109G Mounting Kit for 1949-1954 Chevy with Chassis Engineering IFS
- CP-1109PM Mounting Kit for 1949-1954 Chevy with non-Chassis Engineering Pinto Mustang IFS
Chassis Engineering CP-1109PM Features:
This Kit includes:
Engine mounts fit:
Product Variants:
Easy to install use this kit with aftermarket Pinto/Mustang front suspension. Weld on kits include adapters, mounts, Thru bolt cushion sets, and instructions.
Installation Instructions for CP-1109 Small Block Chevy Engine Swap Kit for 1949-1954 Chevy Car using aftermarket Pinto/Mustang suspension.
1. Remove original engine, transmission and rear end. Remove transmission cover in floor for access. Cut the two braces from inside of frame rails that interfere with engine mounting. As you progress, you will find other odd pieces that will need to be removed/trimmed for clearance and fit.
2. Slip both the frame adapters over the frame and locate as shown below.
3. Trim outside of frame adapter saddle as needed to clear spring pod of IFS
Part TypeEngine Mount
BrandCHASSIS ENGINEERING INC.
Package Height6.0
Package Width6.0
Package Length12.0
Weight9.0 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part NumberCP-1109PM
Package Qty1
Package TypeEA
