Vehicle Info NeededCHASSIS ENGINEERING INC.PART NUMBER: 141-CP-2104

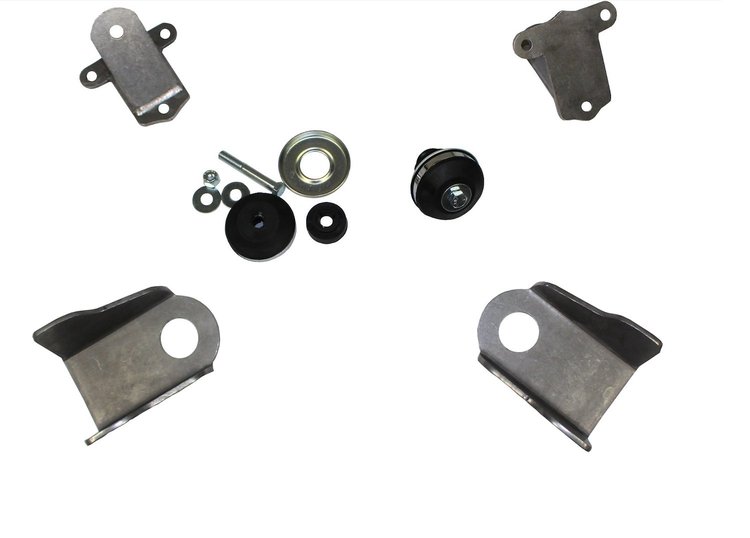

CP-2104 1933-1934 Ford Small Block Chevy V8 Engine Mounting Kit
$19700
Ships on 09/14/2026
Lowest Price GuaranteeFord
- 1933-1934 Ford Small Block Chevy V8 Engine Mounting Kit
- Weld on frame adapters for boxed frame
- Chassis Engineering engine side mounts
- Thru bolt cushion set
- Chevy V8, 1958-up : 283, 302, 307, 327, 350, 400 CI Small Block
- Chevy V6 with the distributor at rear
Chassis Engineering CP-2104 Features:
CP-2104 Small Block Chevy V8 Engine Mounting Kit for 1933-1934 Ford
Engine Mounting Kit to fit small block Chevy V8 into 1933-1934 Ford car and pick-up includes:
Engine mounts fit:
Installation Instructions for CP-2104 Chevy V8 Engine Swap Kit for 1933-1934 Ford Car and Pickup Truck
Note: always use proper safety equipment when welding and grinding!
1. Position and tack-weld both frame adapters in place as shown .
2. Double-check measurements and weld adapters to frame. If center to center distance is not 19 inches then frame thickness (2 inches when boxing plates are correctly installed) is not correct, or the rails may have been warped while installing the boxing plates. The amounts will absorb a slight misalignment.
Part TypeEngine Mount
BrandCHASSIS ENGINEERING INC.
Package Height4.0
Package Width8.0
Package Length12.0
Weight7.0 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part NumberCP-2104
Package Qty1
Package TypeEA
