Vehicle Info NeededCHASSIS ENGINEERING INC.PART NUMBER: 141-CP-2107

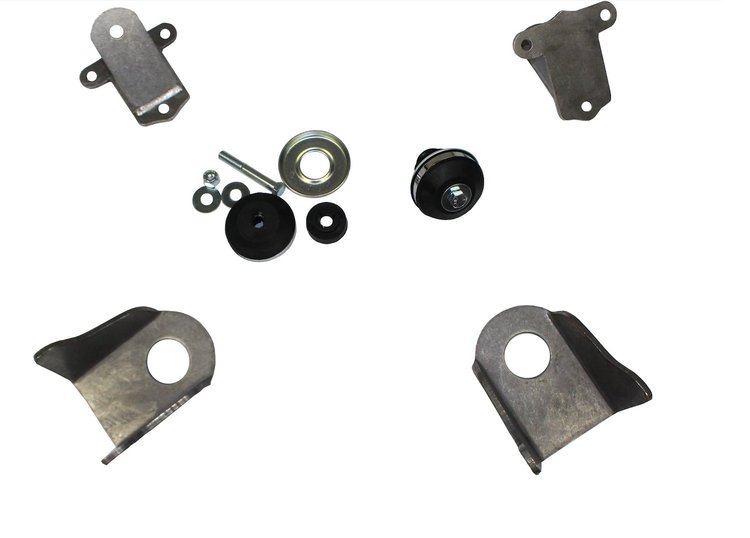

CP-2107 1932 Ford Small Block Chevy V8 Engine Mounting Kit
$18700
Ships on 09/11/2026
Lowest Price GuaranteeFord
- 1932 Ford Small Block Chevy V8 Engine Mounting Kit
- Weld on frame adapters for boxed frame
- Chassis Engineering engine side mounts
- Thru bolt cushion set
- Chevy V8, 1958-up : 283, 302, 307, 327, 350, 400 CI Small Block
- Chevy V6 with the distributor at rear
Chassis Engineering CP-2107 Features:
CP-2107 Small Block Chevy V8 Engine Mounting Kit for 1932 Ford
Engine Mounting Kit to fit small block Chevy V8 into 1932 Ford includes:
Engine mounts fit:
Installation Instructions for CP-2107 Chevy Small Block V8 Engine Swap Kit for 1932 Ford Car and Pickup Truck. Please read all instructions before starting.
Start with boxing the frame. When boxing the frame, keep frame level front and rear. If the frame is off, it will have a twist and your parts and components will not fit properly.
Use a captenters type level to check the top surface of the frame when the frame is right side up and right side down. Clamp angle iron across top of frame rails, then tack weld to inside frame and installation will be square. Recheck often.
Reinforcing plate goes on outside of frame, then fill gap with weld.
Remember to spot first and recheck for squareness of frame.
Frame adapter will need fitting to the boxing plates. It has proven impossible to ensure an exact fit due to all the variables (different parts, years etc) involved with the installation.
Fit frame adapters to the specifications below:
Dimension A depends on the year of your car, type of firewall used, particular engine model, water pump length and transmission used. It is impossible for us to account for all variations, so responsibility for a proper working measurement is in your own hands.
Make sure mounts are straight and level. Tack in place, then double-check all measurements and do the final weld. All steering and exhaust need to be checked at this time also.
Bolt engine mounts to engine and install along with cushion as displayed
Part TypeEngine Mount
BrandCHASSIS ENGINEERING INC.
Package Height4.0
Package Width8.0
Package Length12.0
Weight15.0 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part NumberCP-2107
Package Qty1
Package TypeEA
