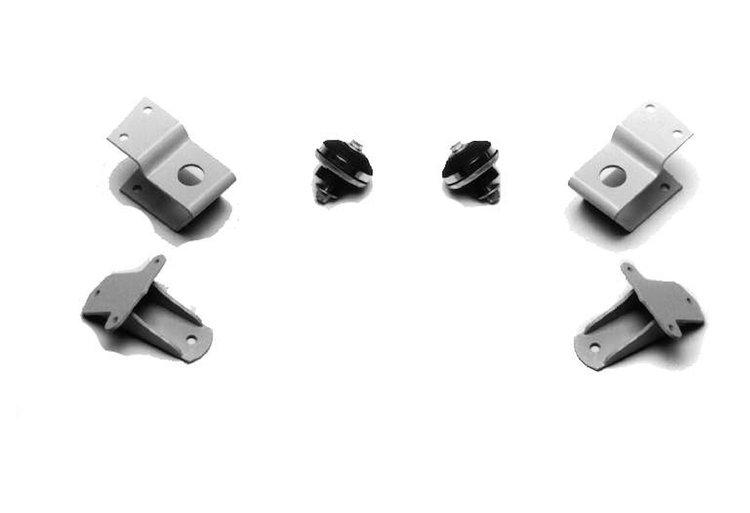

CP-2125 1939-1940 Mercury Small Block Chevy V8 Engine Mounting Kit
InfoVehicle Info Needed
CHASSIS ENGINEERING INC.PART NUMBER: 141-CP-2125

CP-2125 1939-1940 Mercury Small Block Chevy V8 Engine Mounting Kit

$22600
ShippingShips on 09/11/2026
Lowest PriceLowest Price Guarantee

Mercury
    1939-1940 Mercury Small Block Chevy V8 Engine Mounting Kit

    Chassis Engineering CP-2125 Features:

    CP-2125 Small Block Chevy V8 Engine Mounting Kit for 1939-1940 Mercury



    Includes:

  • Bolt on frame adapters,

  • Engine mounts

  • Cushion set

  • Hardware

  • Instructions




    • Engine mounts fit:

  • Chevy V8, 1958-up : 283, 302, 307, 327, 350, 400 CI Small Block

  • Chevy V6 with the distributor at rear


    • Installation Instructions for CP-2125 Chevy Small Block V8 Engine Swap Kit for 1939-1940 Mercury Car

    1. Remove original engine and transmission.

    2. Bolt engine mounts to the small block Chevy engine to be installed.

    3. Place frame adapters around frame and clamp into position shown below. Make sure adapters are straight and level.

    4. Drill bolt holes in frame to 3/8". Install bolts and tighten.

    5. Install cushion set as shown.



Part TypeEngine Mount
BrandCHASSIS ENGINEERING INC.
Package Height4.0
Package Width8.0
Package Length12.0
Weight10.0 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part NumberCP-2125
Package Qty1
Package TypeEA
