CP-2126 1941-1948 Mercury Small Block Chevy V8 Engine Mounting Kit
InfoVehicle Info Needed
CHASSIS ENGINEERING INC.PART NUMBER: 141-CP-2126

CP-2126 1941-1948 Mercury Small Block Chevy V8 Engine Mounting Kit

$22600
ShippingShips on Sep 14, 2026
Lowest PriceLowest Price Guarantee

GM
    1941-1948 Mercury Small Block Chevy V8 Engine Mounting Kit

    Chassis Engineering CP-2126 Features:

    CP-2126 Small Block Chevy V8 Engine Mounting Kit for 1941-1948 Mercury

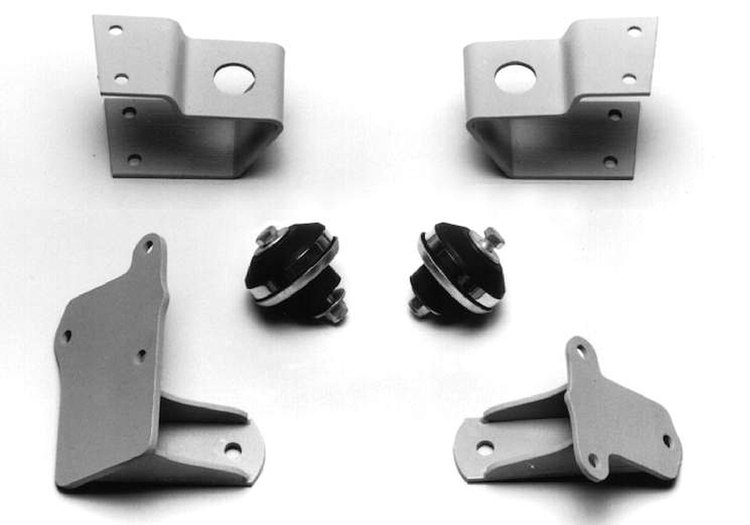

    This kit includes:

  • Bolt on frame adapters

  • Chassis Engineering engine side mounts

  • Bolt cushion set

  • Hardware

  • Instructions




    • Engine mounts fit:

  • Chevy V8, 1958-up : 283, 302, 307, 327, 350, 400 CI Small Block

  • Chevy V6 with the distributor at rear


    • Installation Instructions for CP-2126 Chevy Small Block V8 Engine Swap Kit for 1941-1948 Mercury Car with Cross Steering

    Note: for cross-steering use Chevy LH manifold (center dump lean back)

    1. Remove original frame mounts (engine) from front crossmember.

    2. Place frame adapters around frame and clamp into position shown below. Make sure adapters are straight and level.

    3. Drill bolt holes in frame to 3/8". Install and tighten.

    4. Bolt offset engine mount to left side of engine and standard mount to the right side.

    Install cushion set

Part TypeEngine Mount
BrandCHASSIS ENGINEERING INC.
Package Height6.0
Package Width6.0
Package Length12.0
Weight16.0 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part NumberCP-2126
Package Qty1
Package TypeEA
