Vehicle Info NeededCHASSIS ENGINEERING INC.PART NUMBER: 141-CS-1119

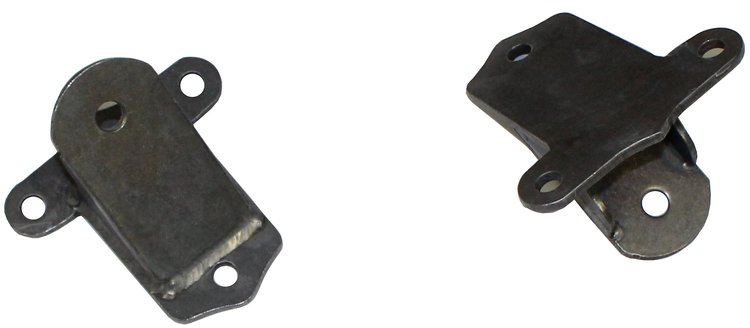

CS-1119 19 in. Chevy V8 Engine Mounts
$8500
Ships on 09/04/2026
Lowest Price GuaranteeGM
- 19 in. Chevy V8 Engine Mounts
- Chevy V8, 1958-up : 283, 302, 307, 327, 350, 400 CI Small Block
- Chevy V8, 1965-up : 396, 402, 427, 454 CI Big Block
- Chevy V6 with the distributor at rear
- CS-1117, 17 in. Chevy V8 Motor Mounts
- CS-1119, 19 in. Chevy V8 Motor Mounts (this product)
- CS-1119OS, 19 in. Chevy V8 Motor Mounts (with a 1-3/4 in. left side offset)
- CS-1119OOS, 19 in. Chevy V8 Motor Mounts (with a 1-3/4 in. dual side offset)
- CS-1122, 22 in. Chevy V8 Motor Mounts
- CS-1122OS, 22 in. Chevy V8 Motor Mounts (with a 1-3/4 in. left side offset)
- CS-1122OOS, 22 in. Chevy V8 Motor Mounts (with a 1-3/4 in. dual side offset)
- For boxed frames, measure the distance on the inside of the frame between the boxing plates:
- For channel frames, measure the distance on the inside of the frame between the side walls of the frame rails.
Chassis Engineering CS-1119 Features:
Universal Chevy V8 Motor Mounts for 22-26 in. wide frames.
These universal Chevy V8 motor mounts fit the following engines:
Other versions of these universal Chevy V8 engine mounts:
Note: Before going the universal route, have a look at our complete motor mount kits, and see if there is a motor mount kit for your truck or car listed. If there is, use that kit instead.
Universal Motor Mount Tips & Tricks:
To determine the length you need for the motor mount, measure the frame width as follows:
Then use the information in the diagram below to determine the length needed for the motor mount:
Note: If you are using one of our engine cross members , instead of one of our frame adapters, use 19 in. universal motor mount sets.
For best results, have a look at the universal frame adapters selection on our website to find a matching set of frame mounts for your particular car or truck frame. Of course we recommend using our street rod-engineered SS-0011 engine cushion set with Thru Bolt Construction for safety, stability and durability.
Chassis Engineering Installation Instructions for Universal Chevy V8 Motor Mount Set
Installation Instructions for CS-1119 Universal Chevy V8 Engine Mounts (19")
Important note: Please read the instructions before starting your motor mounting/installation.
Step 1: Start with boxing the frame.
When you are boxing the frame, keep the frame level at the front and rear. If the frame has a slight twist, components will not fit properly.
Step 2: Use a carpenter's type level to check the top surface of the frame when the frame is right side up and upside down.
Step 3: Clamp angle iron across top of frame rails, then tack weld to ensure frame and installation will be square. Recheck often.
Step 4: Reinforcing plate goes on the outside of the frame, then fill the gap with weld. Remember to spot-weld first and recheck the frame to make sure it is square.
Step 5: The frame adapter will likely need some adjustment before attaching to the boxing plates.
Due to many variables involved, it is not possible to produce a 100% sure fit for all installations, so some slight fitting is needed. Our frame adapters have some playroom to make sure it all fits properly and securely.
Fit the frame adapters based on the measurements in the drawing below. Measurement A depends on the year of the car, type of firewall used, particular engine, water pump length and transmission used.
Make sure the frame mounts are straight and level, then tack them in place. Make sure to double check all measurements before finishing the final welding of your parts.
All steering and exhaust should be checked at this time as well.
Bolt the motor mounts to engine block, and install your engine.
Chassis Engineering Engine Mounts For Street Rod, Hot Rod, And Custom Motor Installations
Chassis Engineering Engine Mounts are designed to provide secure, reliable engine placement for classic car restorations, hot rod projects, and custom street rod builds. Built for popular GM, Ford, and Mopar engine applications, these precision-crafted mounts help ensure proper drivetrain alignment, reduced vibration, and dependable chassis support during high-performance driving. Manufactured from durable steel for long-lasting strength and easy installation, Chassis Engineering motor mounts are a trusted choice for engine swap enthusiasts seeking quality aftermarket mounting solutions and professional-level fitment.
Part TypeEngine Mount
Product LineChassis Engineering Engine Mounts
BrandCHASSIS ENGINEERING INC.
Package Height4.0
Package Width5.0
Package Length7.0
Weight2.0 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part NumberCS-1119
Package Qty1
Package TypeEA
