Vehicle Info NeededCHEVROLET PERFORMANCEPART NUMBER: 809-12499217

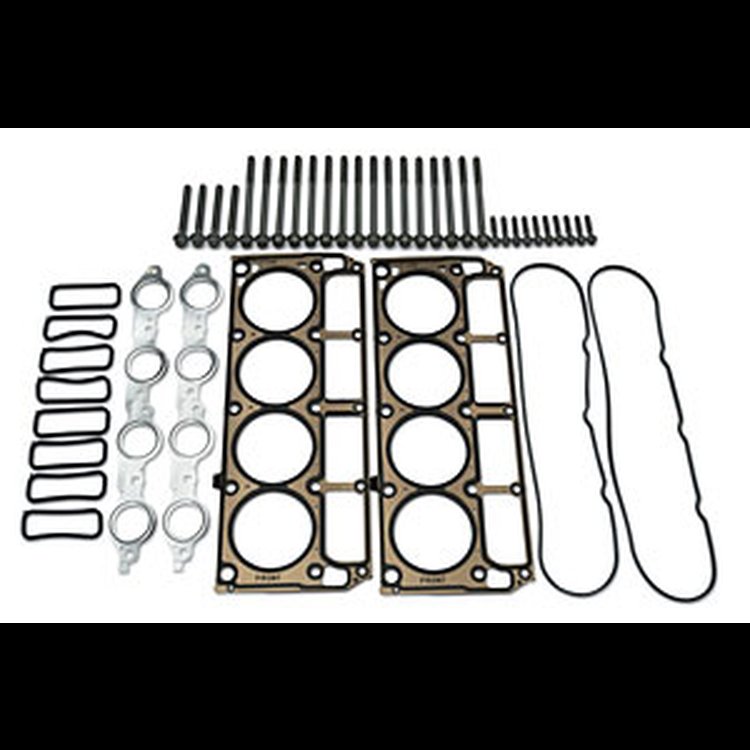

Cylinder Head Installation Gasket Kit 2001-2002 Camaro/Firebird LS1/LS6
$24326
Ships on Sep 14, 2026
Lowest Price GuaranteeGM LS Head Gaskets
- Head Installation Gasket Kit
- 2001-2002 Camaro/Firebird LS1/LS6
- Intake Seals
- MLS Head Gaskets
- Valve Cover Gaskets
- Exhaust Gaskets
- Complete Head Bolt Set
- Comprehensive cylinder head installation kit for 2002 Camaroand Firebird models equipped with the LS1 engine
- Kit includes 2 head gaskets, 2 valve cover gaskets, 8 intakemanifold gaskets, 2 exhaust manifold gaskets, 2 intake manifold-to-block seals, 20 long-head bolts and 10 short-head bolts
Part TypeHead Gasket
BrandCHEVROLET PERFORMANCE
Package Height6.0
Package Width8.8
Package Length21.0
Weight8.48 PG
Part CategoryPerformance Parts
Face Width8.067
ConfigurationMulti Piece
Intake Gaskets IncludedYes
Valve Cover Gaskets IncludedYes
Gasket Face Width (Mm)206.7mm
Exhaust Manifold Gaskets IncludedYes
Timing Cover Gaskets IncludedNo
Water Neck Gasket IncludedNo
Water Pump Gaskets IncludedNo
O-Ring Rim ShapeRound
Gasket Glue IncludedNo
Upper Intake Manifold Plenum Gasket IncludedNo
Cylinder Bore Diameter100
Rear Main Seal IncludedNo
Valley Pan IncludedNo
Fuel Pump Gasket IncludedNo
Fuel Injector O-Rings IncludedNo
ColorGold, Black
QuantitySold as a kit
Exhaust Pipe Gasket IncludedNo
Valve Stem Seals IncludedNo
MaterialStainless Steel Laminate
Distributor Gasket IncludedNo
Head Gaskets IncludedYes
Gasket Face Width (In)8.1377952756in
Thickness1.33
Timing Cover SealNo
Gasket Set TypeHead and intake gasket set
Cylinder Bore Diameter (In)3.937007874
Oil Pan Gasket IncludedNo
Gasket Sealant IncludedNo
Head Fastener StyleBolt
Grade TypePerformance
Head Fasteners IncludedYes
Vendor Part Number12499217
Package Qty1
Package TypeEA
