CHEVROLET PERFORMANCEPART NUMBER: 809-12524294

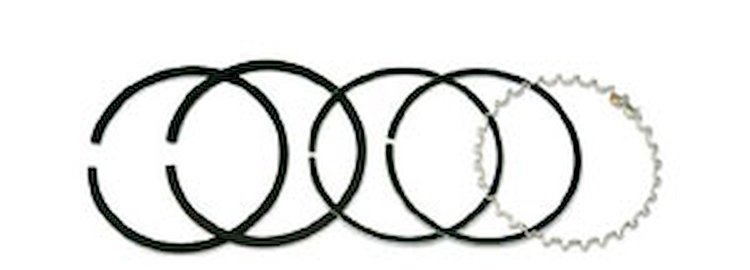

Piston Rings Chevy 502, Bore: 4.500''

Name: Piston Rings Chevy 502, Bore: 4.500''
Brand: CHEVROLET PERFORMANCE
SKU: 809-12524294
Price: 44.38 USD
Availability: InStock

^$44³⁸

Ships on 09/14/2026

Lowest Price Guarantee

Big Block Chevy

Chevy 502
Bore: 4.500''
Top Ring: 5/64''
Second Ring: 1/16''
Oil Ring: 3/16''
Single Cylinder Set

Part TypePiston Ring

BrandCHEVROLET PERFORMANCE

Package Height0.5

Package Width5.9

Package Length5.9

Weight0.25 PG

Part CategoryPerformance Parts

Top Ring IncludedYes

Oil Ring MaterialStainless steel

Oil Ring IncludedYes

File FitNo

QuantitySold as a set

Oil Ring Thickness0.188 in (4.8 mm)

Second Ring MaterialIron

Second Ring IncludedYes

Second Ring Facing MaterialCast iron

GaplessNo

Top Ring Facing MaterialMoly

Top Ring Thickness0.078 in (2 mm)

Top Ring MaterialIron

Bore (Mm)114.3

Oil Ring TensionStandard

Second Ring Thickness1/16

Bore4.5 in (114.3 mm)

Vendor Part Number12524294

Package Qty1

Package TypeEA
