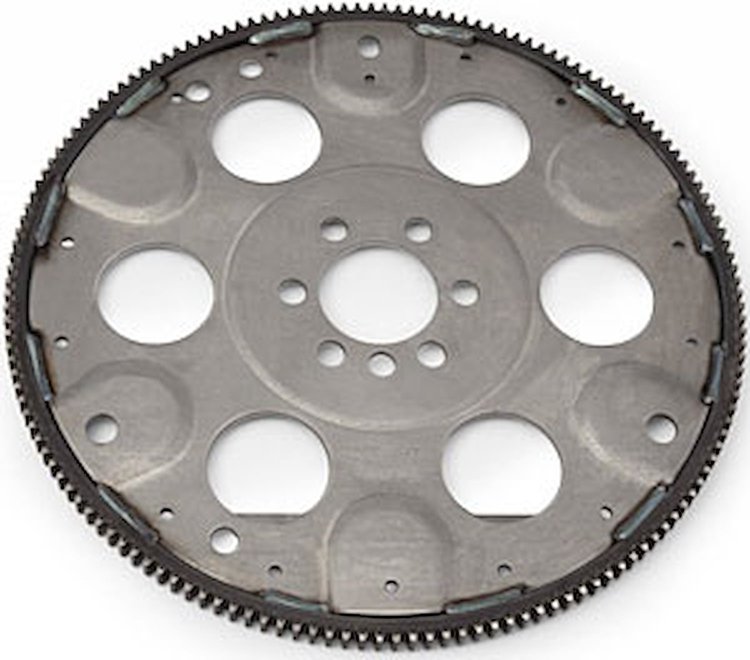

Vehicle Info NeededFlexplate 1991-up Big Block V8
Ships on 11/16/2026
Lowest Price GuaranteeItems You Need
![Torque Converter Bolts For TH350, TH400 and Powerglide Converters [Set of 3]](https://www.jegs.com/images/mini_200/500/555/555-82501.jpg)
JEGS
Part Number : 555-82501
- Flexplate
- 1991-up Big Block V8
- One-Piece Rear Seal
- Internal Balance
- 14" Outside Diameter
- 3.58" Crank Flange Pattern
- 11.50" Torque Converter Bolt Pattern
- 168-Tooth Ring Gear
Quality Flexplates for Automatic Transmissions
At the opposite end of the crankshaft from the balancer is the flexplate, which connects the engine to the automatic transmission through the torque converter assembly. Flexplates help transfer power from the engine to the wheels. Chevrolet Performance offers both internally and externally balanced Chevy flexplates. It is critical that you use the correct design for your specific engine application. Engines with one-piece crankshaft seals require externally balanced flexplates (except for ZZ427, ZZ572/620, ZZ572/720R and the Anniversary Edition 427).
Show More
Note: Torque converters for TH350 and TH400 transmissions are produced with both 10.75" and 11.50" diameter converter bolt patterns. To identify the correct converter bolt pattern, measure from the converter center to an attaching bolt hole and then multiply this dimension by 2.
