Product Discontinued
CHEVROLET PERFORMANCEPART NUMBER: 809-19329418

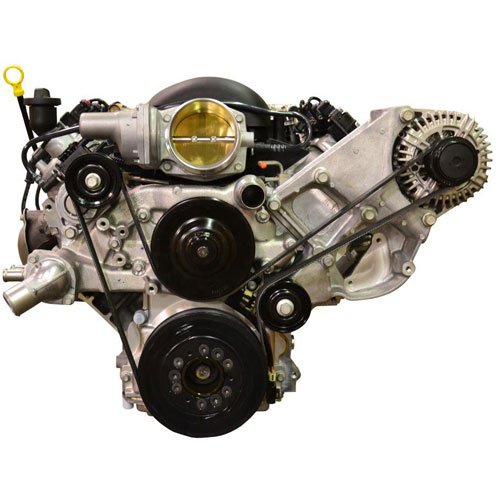

Corvette Style Accessory Drive System Without Power Steering, Without A/C
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
LS Engine Serpentine Drive Kits
- Corvette Style Accessory Drive System
- Without Power Steering, Without A/C
- Top Mounted Alternator
- Fits all Non-LSA/LS9 LS engines
- Direct Bolt-on for LS3 & LS7 engines
Package Includes: - Generator Mounting Bracket
- 110amp Alternator
- 6-rib 1888mm Serpentine Belt
- Idler Pulley
- Belt Tensioner with Bracket
- Bolts, Hardware and InstructionsNote: Most harmonic balancers will not line up properly with this system, P/N 809-12674582 LS3 Harmonic Balancer is recommended for proper belt alignment.
Part TypeAccessory Drive Belt Kit
BrandCHEVROLET PERFORMANCE
Package Height11.0
Package Width11.8
Package Length24.8
Weight27.73 PG
Part CategoryPerformance Parts
Belt MaterialRubber - EPDM
Pulley 3 Outside Diameter (Mm)68.68
Pulley 2 Width (In)1.11
Belt Top Width0.807
Pulley 2 ColorBlack
Pulley 3 MaterialSteel
Pulley 1 Width (Mm)30.14
Pulley 3 Groove Quantity6
Pulley 2 Outside Diameter (In)3
Belt ColorBlack
Pulley 3 Mount Hole Quantity1
Pulley 3 Width (In)1.77
Pulley 1 MaterialNylon
Pulley 2 Outside Diameter (Mm)76.2
Pulley 1 Bore Diameter (Mm)9.6
Pulley 1 Groove Quantity6
Pulley 2 Bore Diameter (Mm)10
Pulley 1 Mount Hole Quantity1
Universal Or Specific FitSpecific
Pulley 1 Outside Diameter (Mm)77.4
Pulley 3 Outside Diameter (In)2.7
Pulley 2 Mount Hole Quantity1
Belt Groove Quantity6
Pulley 2 MaterialSteel
Pulley 1 ColorBlack
Pulley 2 Bore Diameter (In)0.39
Pulley 3 Width (Mm)45.03
Pulley 1 Width (In)1.19
Pulley 2 Groove Quantity0
Pulley 1 Bore Diameter (In)0.378
Pulley 2 Width (Mm)28.12
Pulley 3 ColorBlack
Pulley 1 Outside Diameter (In)3
Package Qty1
Package TypeEA
