NOTE:

• Deluxe kit includes all of the components and hardware necessary to install on an engine with air conditioning.
• Air conditioning has a separate belt; to delete air conditioning, do not install the belt, compressor or tensioner
• Includes 150Amp Alternator, Power steering pump, mounting brackets, pullies, hardware, belt, tensioner etc. Kit uses OEM 2006-2007 Cadillac CTSV components.
• This kit is was originally designed for CTS-V type engine bays and is taller and narrower than the p/n 19155167 kit. Measurements from the crank centerline: vertically 17.0" high, drivers side is 12.0" wide, and passenger side is 12.5" wide.
• Most harmonic balancers do not line up correctly with the accessory drive system; damper P/N 809-12674582 is strongly recommended.
• Will not work with a cam-phased engine.
• Will not work on LS327 with cast iron block
• Water pump P/N 809-89018052 NOT Included with kit
• Includes fixed displacement compressor
• Use p/n 809-19299069 for A/C add-on if Variable Displacement Compressor is needed.
• If using a Russell p/n 799-648060 16mm X1.5mm O-ring adapter on the power steering pump in this kit, approximately .060" will need to be machined off of the back face of the pulley to clear the adapter fitting. The pump will supply 2 gallons per minute @ 1640/1740 PSI

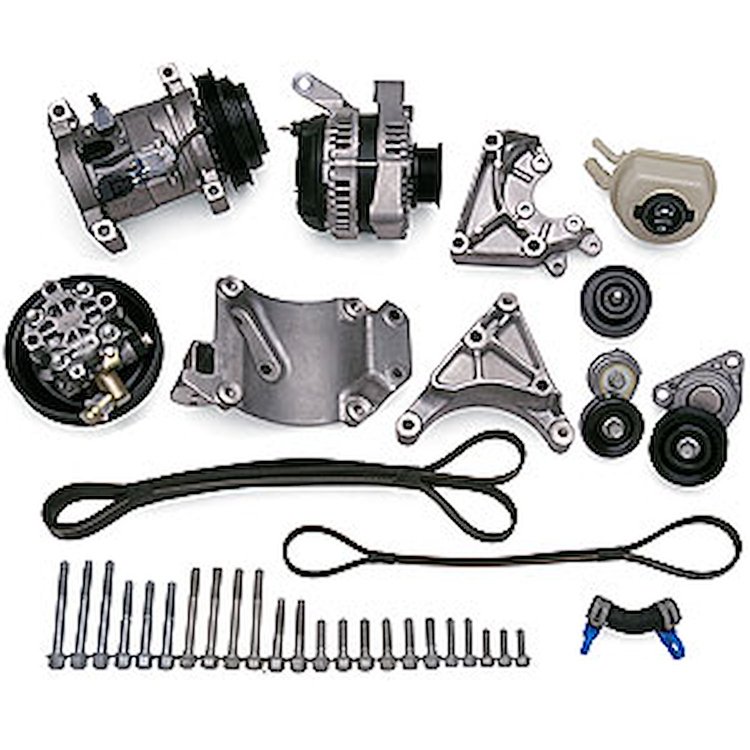

The system includes:

• p/n 809-12578548 (1) Bracket-Air Conditioning
• p/n 809-19130461 (1) Compressor-Air Conditioning
• p/n 809-12595289 (1) Tensioner-Air Conditioning Belt
• p/n 809-12578549 (1) Belt-Air Conditioning Compressor
• p/n 809-12578551 (1) Bracket-Power Steering Pump
• p/n 809-21997867 (1) Pump-Power Steering
• p/n 809-12578552 (1) Pulley-Power Steering Pump
• p/n 809-21997866 (1) Reservoir-Power Steering Fluid
• p/n 809-21997868 (1) Hose-Power Steering Fluid Reservoir With Clamps
• p/n 809-12578550 (1) Bracket-Generator
• p/n 809-25766345 (1) Generator
• p/n 809-12568996 (1) Pulley-Belt Idler
• p/n 809-12569301 (1) Tensioner-Drive Belt
• p/n 809-12578553 (1) Belt-Water Pump/Generator/ Power Steering
• p/n 809-11515768 (6) Bolt, Transaxle Br
• p/n 809-11516360 (4) Bolt - 10 x 1.50 x 90mm
• p/n 809-11518637 (3) Bolt - Hvy HX Acorn Flg Hd
• p/n 809-11518630 (2) Bolt - Hvy HX Acorn Flg Hd
• p/n 809-11518075 (3) Bolt - Hex Flg HD
• p/n 809-11518633 (3) Bolt, Gen
• p/n 809-11515760 (2) Bolt Hvy Hex Flg
