• Controller
• Wiring Harness
• MAF Sensor
• O2 Sensors
• Throttle Pedal

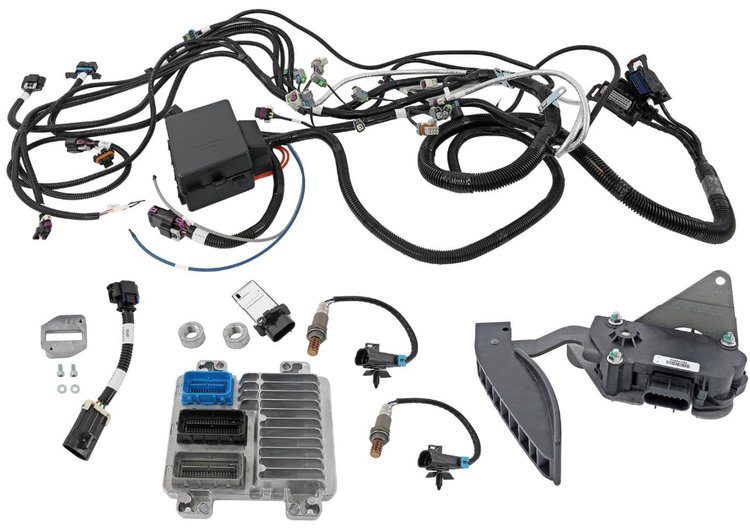

The Chevrolet Performance 19540147 LS2/LS3 Engine Controller Kit is a plug-and-play, stand-alone engine management system for installing a Chevrolet Performance LS3 crate engine into older vehicles. The kit ships with a pre-programmed engine control module calibrated specifically for retrofit applications, eliminating many of the diagnostic features required in late-model production vehicles that would otherwise trigger trouble codes during a swap. All hardware needed to plug into the engine and start it is included, requiring only power and ground sources, a high-pressure fuel pump, and an electric cooling fan to complete the installation. Maximum engine speed is 6,600 rpm. Supersedes Part Number 19354328.

Chevrolet Performance 19540147 Features:

• Fits GM Gen IV LS2 and LS3 crate engines
• Plug-and-play calibration for retrofit installations
• Stand-alone operation; no third-party tuning required for most applications
• Pre-programmed engine control module, P/N 19354329 included
• Complete wiring harness with fuse box and cam and MAP sensor jumpers
• Mass airflow meter with mounting boss for intake system
• Two oxygen sensors with weld-in mounting bosses for exhaust system
• Throttle pedal assembly for electronic throttle body
• Detailed installation instructions
• Maximum 6,600 rpm operation
• Compatible only with Chevrolet Performance SuperMatic 6L80 transmissions; not compatible with production or service replacement 6L80
• Supersedes Part Number 19354328, 1958270, 19201861, 19166568

Chevrolet Performance 19540147 Includes:

• Pre-programmed engine control module
• Wiring harness with fuse box
• Mass airflow meter and mounting boss
• Two oxygen sensors and two weld-in mounting bosses
• Throttle pedal assembly
• Installation instructions
