Product Discontinued
CLASSIC INSTRUMENTSPART NUMBER: 087-CO63CW

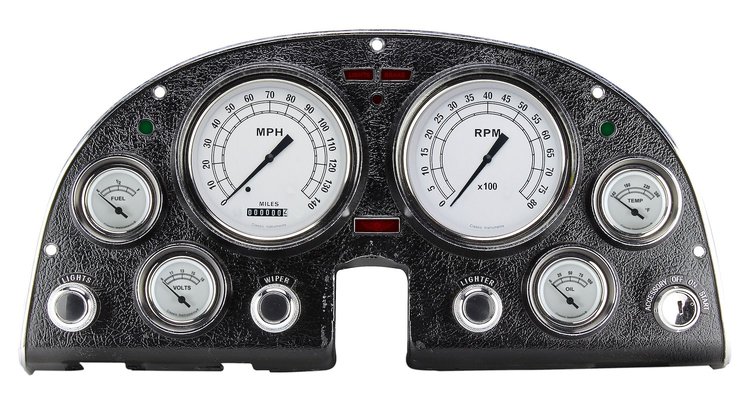

Classic White Series Instrument Package 1963-67 Corvette Includes:
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Classic White Series
Classic White Series Instrument Package1963-67 Corvette
Includes: Speedometer (0-140 mph) Tachometer (8,000 rpm) Fuel Gauge (0-90 ohm) Oil Pressure Gauge Temperature Gauge Voltmeter
Includes:
Classic Instruments 087-CO63CW Features:
This;Classic White series 1963-67 Corvette gauge cluster features a 4 5/8" Speedometer and tach, and 2 1/8" fuel (0-90 ohm), temp, volt, and oil pressure gauges with Stainless Low Step bezels and flat glass lenses. This package is designed to operate with any original equipment or modern engine and transmission combination or ECU. The gauges come mounted in a precision machined adapter panel that bolts directly to the original* dash bezel for easy installation. The panel is designed to use the original warning and indicator light locations and includes an additional warning light in place of the trip odometer. It arrives pre-wired together and includes a;wiring harness constructed of automotive grade TXL wire, machine-crimped terminals, tech-flex sleeving, and Molex main connectors. Also included are;standard GM sending units and it is equipped with our ZST™.;It works directly with ECM or VSS signals so no additional control box is needed.- Designed to operate with any original equipment or modern engine and transmission combination or ECU
- The gauges come mounted in a precision machined adapter panel that bolts directly to the original* dash bezel for easy installation. light locations and includes an additional
- The panel is designed to use the original warning and indicator light locations and includes an additional warning light in place of the trip odometer
- Pre-wired together and includes a wiring harness constructed of automotive grade TXL wire, machine-crimped terminals, tech-flex sleeving, and Molex main connectors
- Equipped with our ZST™. It works directly with ECM or VSS signals so no additional control box is needed.
- Standard GM sending units included
- Dash bezel not included
Classic Instruments 1963-67 Corvette Instrument Package is an assembled, ready-to-install instrument panel that consists of a 140 mph speedometer; 8,000 rpm tachometer; fuel level (0-90 ohm), oil pressure, temperature gauges; and voltmeter installed in a pre-wired adapter panel that bolts directly into the original dash bezel. The panel is designed to use original warning/indicator light locations and includes an additional warning light in place of the trip odometer. Includes standard GM sending units.
Show More
Features:
- Completely Assembled
- Ready to Install
- Great Looks & Functionality
- Gauges Installed in a Pre-wired Adapter Panel
- Standard GM Sending Units Included
- Stainless Low-Step Bezels & Flat Glass are Standard
Part TypeGauge
Product LineClassic Instruments 1963-67 Corvette Instrument Packages
BrandCLASSIC INSTRUMENTS
Package Height8.0
Package Width16.0
Package Length24.0
Weight11.0 PG
Part CategoryReplacement Parts
Part FitmentSemi Universal
Vendor Part NumberCO63CW
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
