Product Discontinued
CLASSIC INSTRUMENTSPART NUMBER: 087-CT67HR
Hot Rod Series Instrument Package 1967-72 Chevy Truck Includes:
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Hot Rod Series

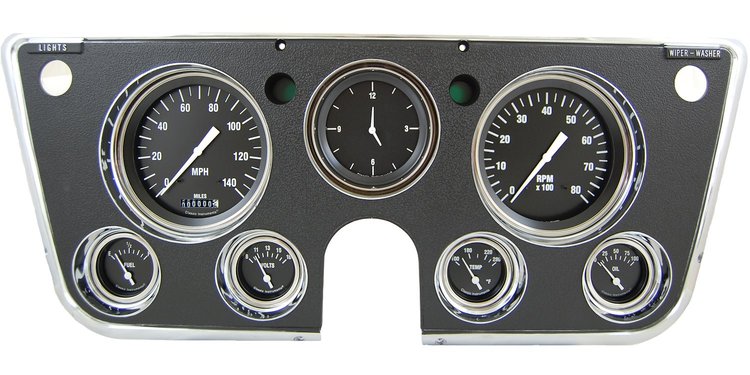

Hot Rod Series Instrument Package1967-72 Chevy Truck
Includes: 4-5/8" Speedometer 4-5/8" Tachometer 3-3/8" Clock 2-1/8" Fuel (0-90 ohm) 2-1/8" Oil Gauge 2-1/8" Temperature Gauge 2-1/8" Voltmeter
Includes:
Classic Instruments 087-CT67HR Features:
The 1967-72 Chevy Truck Package with our;Hot Rod Series installed, features a 4 5/8" Speedometer and tachometer, 3 3/8" Clock, and 2 1/8" Fuel (0-90 OHM), Oil, Temp, and Volt gauges. A blue LED high beam indicator is installed in the speedometer.;The set includes pre-wired electrical connections, mounting hardware, all necessary* sending units, and a wiring harness;constructed of automotive grade TXL wire, machine-crimped terminals, tech-flex sleeving, and Molex main connectors. It is equipped with our ZST™ and works directly with ECM or VSS signals so no additional control box is needed.- LED lighting with built-in LED dimmer, and molded “light intensifier” ring for bright, even lighting. Brightness of the LEDs can be adjusted with a potentiometer on the back of the cluster
- Turn signal indicators in the left and right sides of cluster, green LEDs
- High beam indicator hidden at the top of the tachometer, red LED HaloTM
- Standard GM sender kit included (temp., fuel, oil, speedometer senders), part no. SNGM
Upgrade Your Out-Dated Instrument Gauges
Classic Instruments 1967-1972 Chevy Truck Direct-Fit Instrument Packages are completely assembled and ready to install. They consist of a Speedometer (with a blue LED high beam indicator in the face), Tachometer, Fuel Gauge (0-90 ohm), Oil, Temperature, Voltmeter, and Quartz Clock (with push-button reset). Each package is available in a variety of styles and includes pre-wired electrical connections with wiring harness, mounting hardware, and appropriate sending units.
Part TypeGauge
Product LineClassic Instruments 1967-72 Chevy Truck Instrument Packages
BrandCLASSIC INSTRUMENTS
Package Height6.2
Package Width14.9
Package Length23.6
Weight10.39 PG
Part CategoryReplacement Parts
Part FitmentSemi Universal
Vendor Part NumberCT67HR
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
