Vehicle Info NeededCLASSIC INSTRUMENTSPART NUMBER: 087-SN34

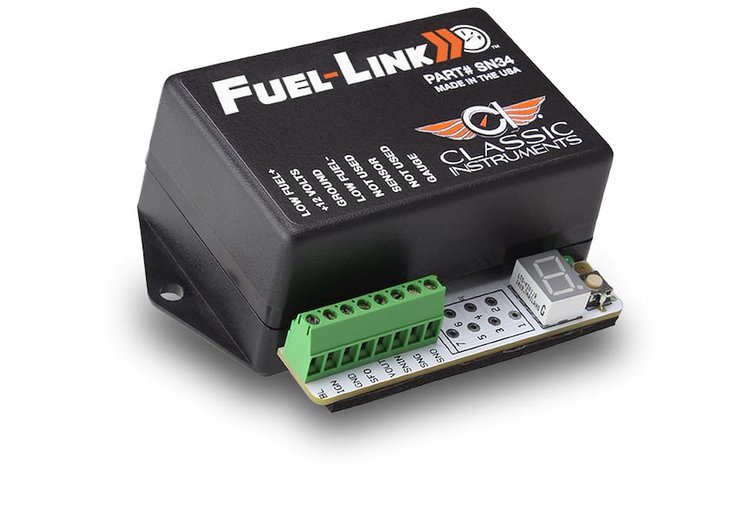

FuelLink Fuel Interface 3" x 2" x 1.5"
$17295
2 left in stock
Ships on Sep 08, 2026
Lowest Price GuaranteeFuelLink Fuel Interface3'' x 2'' x 1.5'' Eight Ohm Presets or Choose Custom Calibration
Classic Instruments 087-SN34 Features:
The Fuel Link interface is the problem-solver between fuel senders and gauges to correct ohm mismatch and erratic movement due to fuel slosh.7. 40-250, Late model GM8. 10-180 VDOCompatible preset fuel sender ohm ranges (empty to full)1. 240-33, standard aftermarket2. 0-90, GM Type '66 and later3. 0-30, GM Type '64 and earlier4. 16-158, Ford Type '87 and later5. 75-10, Ford type '86 and earlier6. 90-0, Toyota and Nissan '85 and later- Made in the USA
- User can calibrate a custom ohm range (between 0-350 ohms)
- The gauge is calibrated at every 1/4 tank reading, ensuring accurate readings
- The interface is compatible with nearly any short sweep fuel gauge and fuel sender combination
- NOT compatible with modern micro-processor controlled fuel gauges
- Easy screw terminal wire connections
- Compact size, 3" x 2" x 1.5", with mounting holes for under-dash installation
- On-board pushbutton with LED readout for calibration
- Low Fuel Light trigger at 1/8 tank (works with a LED or incandescent bulb)
Preset Ohm Ranges or Custom Calibrate from 0 to 350 Ohms
Classic Instruments FuelLink is an interface between fuel gauges and senders that corrects ohm mismatch and erratic movement due to fuel slosh. FuelLink provides accurate results by calibrating the gauge at every quarter tank reading. FuelLink works with most short sweep fuel gauges & fuel sender combinations.
Show More
Features
- 3" x 2" x 1.5"
- Push-Button LED Readout
- Low Fuel Light Triggers at 1/8 Tank
- Customize Calibration up to 350 ohms
- Preset Empty-to-Full Ranges: 240-33, 0-90, 0-30, 16-158, 75-10, 90-0, 10-180, 40-250
- Simple Screw-On Terminal Wire Connections
- Holes for Underdash Mounting
Part TypeGauge Installation Kit
Product LineClassic Instruments FuelLink Fuel Interface
BrandCLASSIC INSTRUMENTS
Package Height2.4
Package Width3.3
Package Length5.9
Weight0.29 PG
Part CategoryReplacement Parts
Vendor Part NumberSN34
Package Qty1
Package TypeEA
