Made in USA

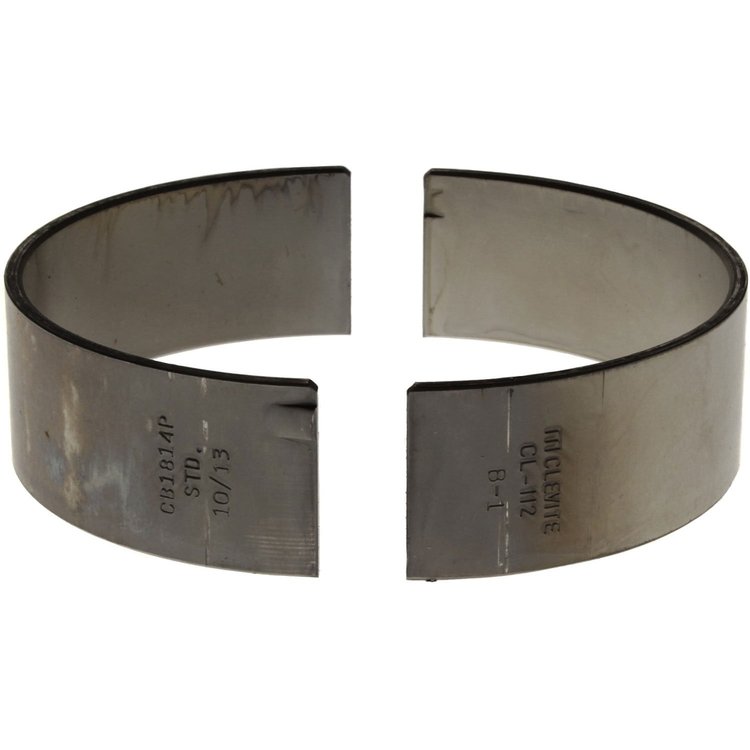

Connecting Rod Bearing Ford/Navistar 2003-2010 V8 6.0L Powerstroke Diesel with Standard Size
InfoVehicle Info Needed
CLEVITE MAHLEPART NUMBER: 695-CB1814P

Connecting Rod Bearing Ford/Navistar 2003-2010 V8 6.0L Powerstroke Diesel with Standard Size

$1799
More than 10 available
ShippingShips Today
Lowest PriceLowest Price Guarantee

Items You Need

Plastigauge Kit

JEGS

Plastigauge Kit

Part Number : 555-80593
$1499$16.99
You Save$2.00
Break-In/Engine Oil Supplement [12 oz. Bottle]

JEGS

Break-In/Engine Oil Supplement [12 oz. Bottle]

Part Number : 555-28060
$1009$11.99
You Save$1.90
Engine Assembly Lube [4 oz. Bottle]

JEGS

Engine Assembly Lube [4 oz. Bottle]

Part Number : 555-28000
$599$6.99
You Save$1.00

Connecting Rod Bearings
    Connecting Rod Bearing
  • Ford/Navistar
  • 2003-2010
  • V8 6.0L Powerstroke Diesel
  • Standard Size
  • P Series

    Notes
  • P Series Bearings - Steel backed bearings with an intermediate layerof copper-lead alloy and an electroplated lead-tin-copperoverlay
  • Standard Shaft Diameter 2.7165/2.7170
  • Bearing O.D. or Housing Bore 2.8735/2.8744
  • Vertical Oil Clearance 0.0006/0.0035

Clevite is a name engine builders trust, world wide. Clevite cast copper-lead engine bearings, developed and proven over decades, set the industry standard for engineering quality. In addition to Clevite engine bearings being the only engine bearings of NASCAR Performance, they succeed on straight tracks as well. Every top NHRA nitro-fueled team puts their trust in Clevite. The P-series rod bearings typically have the greatest amount of eccentricity. Most P-series main sets maximize oil flow to the rod bearings. Both rods and mains have high crush for maximum retention, and a reduced overlay thickness to prevent overlay fatigue. Rod bearings use a hardened steel back for added strength and resistance to fretting. Extra clearance rod bearings are available for .001'' additional clearance and select fitting. Use P-series mains where higher eccentricity is desired to narrow bearing contact patterns and to provide increased oiling to rod bearings.

Show More

Features:

  • High crush for better seating and retention
  • High eccentricity accommodates rod bore distortion
  • Strong, extra-thin overlay to withstand high loading and resist flaking
  • Hardened steel backing for greater strength

Note: Clevite main and cam bearings are priced as sets and rod bearings are priced each (unless noted)

Part TypeConnecting Rod Bearing
Product LineClevite 77 Ford Diesel Engine Bearings
BrandCLEVITE MAHLE
Package Height1.2
Package Width2.4
Package Length3.2
Weight0.18 PG
Part CategoryReplacement Parts
Part FitmentDirect Fit
Vendor Part NumberCB-1814P
Package Qty1
Package TypeEA
