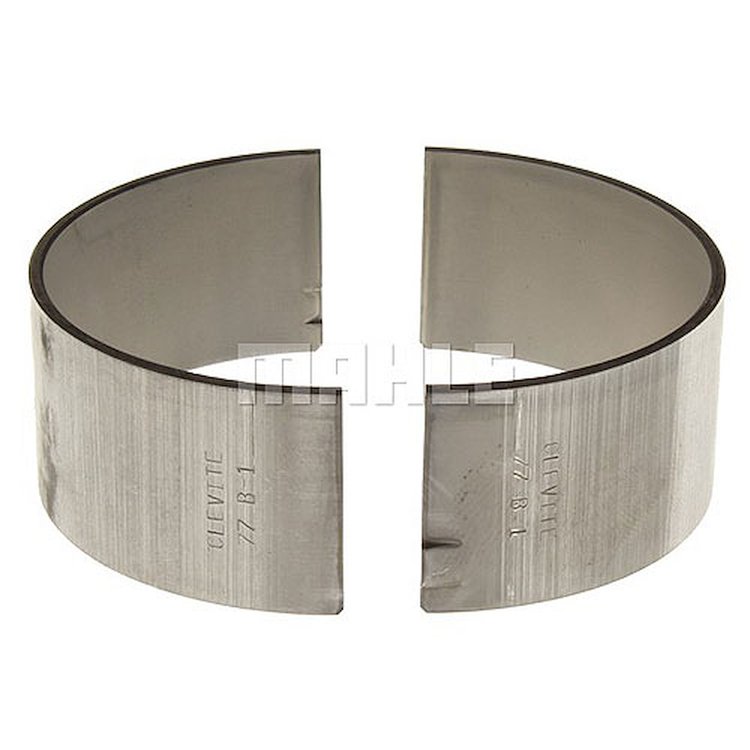

Connecting Rod Bearing Navistar/International 1959-1980 V8 266/304/345/392ci Standard Size
InfoVehicle Info Needed
CLEVITE MAHLEPART NUMBER: 695-CB581P

Connecting Rod Bearing Navistar/International 1959-1980 V8 266/304/345/392ci Standard Size

$2999
ShippingShips on Sep 15, 2026
Lowest PriceLowest Price Guarantee

Connecting Rod Bearings
    Connecting Rod Bearing
  • Navistar/International
  • 1959-1980
  • V8 266/304/345/392ci
  • Standard Size
  • P Series

  • Material: TM-112
  • Standard Shaft Diameter: 2.3730/2.3740
  • Vertical Oil Clearance: 0.0016/0.0041
  • Maximum Wall: 0.0622
  • Bearing O.D. or Housing Bore: 2.4995/2.5000
  • Max Length: 0.9780

Clevite is a name engine builders trust, world wide. Clevite cast copper-lead engine bearings, developed and proven over decades, set the industry standard for engineering quality. In addition to Clevite engine bearings being the only engine bearings of NASCAR Performance, they succeed on straight tracks as well. Every top NHRA nitro-fueled team puts their trust in Clevite. The P-series rod bearings typically have the greatest amount of eccentricity. Most P-series main sets maximize oil flow to the rod bearings. Both rods and mains have high crush for maximum retention, and a reduced overlay thickness to prevent overlay fatigue. Rod bearings use a hardened steel back for added strength and resistance to fretting. Extra clearance rod bearings are available for .001'' additional clearance and select fitting. Use P-series mains where higher eccentricity is desired to narrow bearing contact patterns and to provide increased oiling to rod bearings.

Show More

Features:

  • High crush for better seating and retention
  • High eccentricity accommodates rod bore distortion
  • Strong, extra-thin overlay to withstand high loading and resist flaking
  • Hardened steel backing for greater strength
Part TypeConnecting Rod Bearing
Product LineClevite 77 International Engine Bearings
BrandCLEVITE MAHLE
Package Height1.4
Package Width2.3
Package Length3.2
Weight0.16 PG
Part CategoryReplacement Parts
Part FitmentDirect Fit
Vendor Part NumberCB-581P
Package Qty1
Package TypeEA
