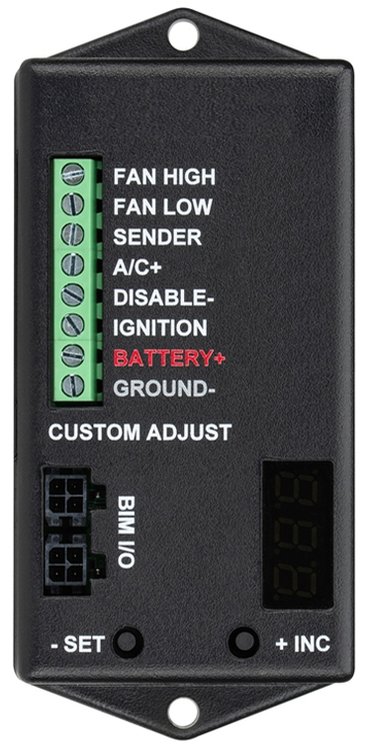

EF-10 Features:

• Compatible with a single fan, dual-fan, or single 2-speed fan setup
• Fully programmable, user-adjustable fan-on and fan-off temperatures
• 0-5 minute adjustable key-off fan run time
• Bluetooth-enabled for use with the Dakota Digital Accessories mobile programming app*
• An LED readout displays temperature readings and maintains programming
• Compatible with an existing water temperature gauge, operating from the temperature sending unit already installed (A dedicated sending unit can be installed for applications without a water temperature gauge)
• Dimensions: 4 in. L x 2 in. W x 1 in. H

Notes:

• A second relay (0-30 amp or 0-70 amp) is required for a dual-fan or 2-speed fan application - sold separately
• OBD-II compatible vehicles can obtain the engine temperature from the ECM with the use of Dakota Digital OBD-II/CAN Interface BIM-01-2 - sold separately
• Can be directly connected to a Dakota Digital plastic-control box instrument system - sold separately
• Mounting is recommended inside the vehicle cab or within any dry environment
