Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

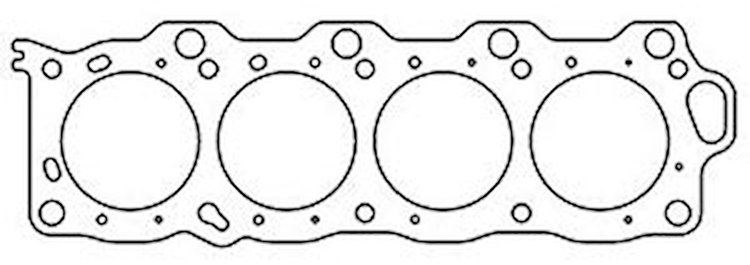

Toyota 4.0L
- Toyota Head Gasket
- 1991-Up 1UZ-FE 4.0L (Right Side)
- Bore: 92.5mm
- Compressed Thickness: .059
Cometic Gaskets 245-C4136-059 Features:
Cometic Multilayer Steel (MLS) Gaskets are designed to provide the best possible seal for naturally-aspirated, boosted, or nitrous-fed engines. These head gaskets are made from 3 to 5 layers of spring stainless steel, offering a stronger base material than standard cylinder head gaskets. Viton-coated outer layers create a superior seal not available with other steel or copper gaskets. Sold individually.
Features:
- Spring stainless steel
- Reduced bore distortion
- Excellent rebound characteristics and corrosion resistance
- Viton rubber coating (.001'' thick) is bonded to outer layer of gaskets
- Designed to withstand extreme cylinder pressures without machining for installation of locking wire
Show More
Installation Notes:
- Not designed for use on engines with O-rings or receiver grooves
- Always refer to the fastener manufacturer to determine accurate torque values
- A surface finish of 50 RA (roughness average) or finer is recommended for proper gasket seal
- Cometic Cylinder Head Gaskets go on dry because they're coated with a sealant (adding another sealer can hinder gasket performance)
Part TypeHead Gasket
Product LineCometic Toyota Cylinder Head Gaskets
BrandCOMETIC GASKETS
Package Height0.3
Package Width8.1
Package Length17.4
Weight0.37 PG
Part CategoryPerformance Parts
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
