Vehicle Info NeededCOMETIC GASKETSPART NUMBER: 245-C4522-030

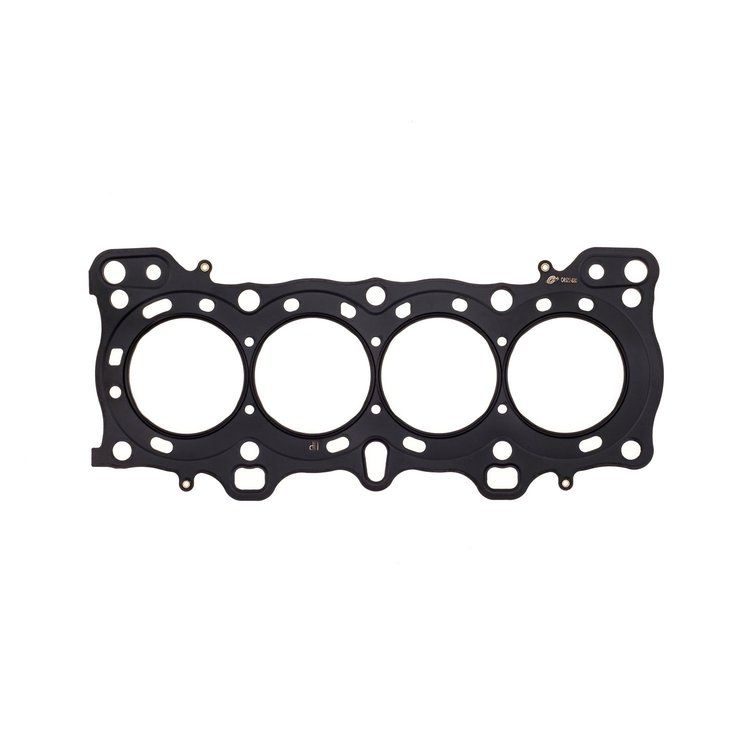

Honda/Acura Head Gasket 1986-89 D16A1 1590cc Bore: 75.5mm
$9652
Ships on Sep 14, 2026
Lowest Price GuaranteeHonda/Acura Head Gaskets
- Honda/Acura Head Gasket
- 1986-89 D16A1 1590cc
- Bore: 75.5mm
- Compressed Thickness:.030"
Cometic Gaskets 245-C4522-030 Features:
Honda D16A1 .030" MLS Cylinder Head Gasket, 75.5mm Bore
High-Performance Multi-Layered Head Gaskets
Cometic Multi-Layer Steel (MLS) Gaskets are designed to provide the best seal for naturally-aspirated, boosted, or nitrous-fed engines. The head gaskets are made from three to five layers of spring stainless steel, offering a stronger base material than standard head gaskets. Viton-coated outer layers create a superior seal not available with other steel or copper gaskets. MLS Cylinder Head Gaskets reduce bore distortion, resist corrosive substances, and have excellent rebound qualities.
Show More
Features:
- Made from spring stainless steel for strong corrosion resistance
- .001" thick Viton rubber is bonded to the outer layers of the gaskets
- Designed to withstand extreme cylinder pressures without requiring machining for the installation of a locking wire
Installation Notes:
- Not designed for use on engines with O-rings or receiver grooves
- Always refer to the fastener manufacturer to determine accurate torque values
- A surface finish of 50 RA (roughness average) or finer is recommended for proper gasket seal
- Cometic Cylinder Head Gaskets go on dry because they're coated with a sealant (adding another sealer can hinder gasket performance)
Part TypeHead Gasket
Product LineCometic Honda Cylinder Head Gaskets
BrandCOMETIC GASKETS
Package Height0.2
Package Width17.5
Package Length18.25
Weight0.55 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part NumberC4522-030
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
