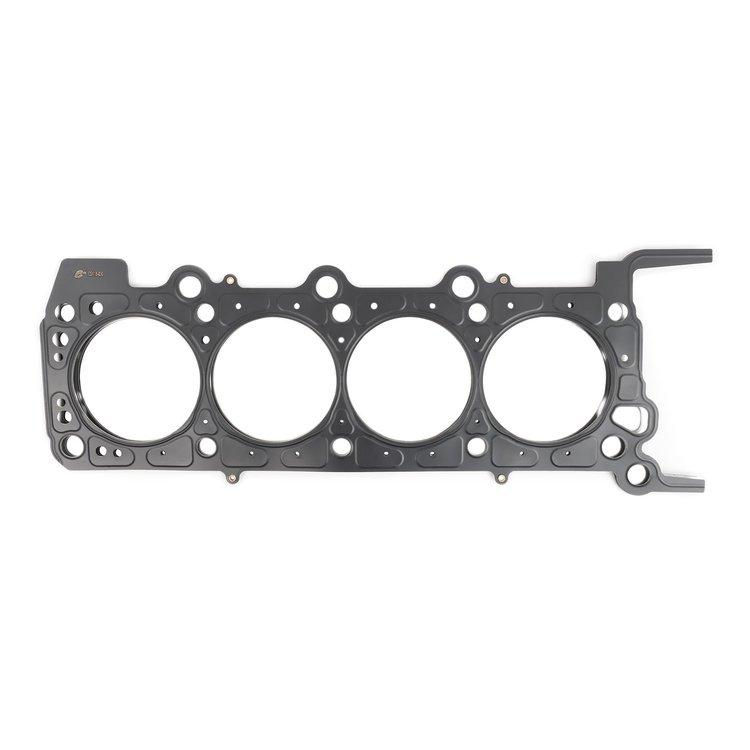

Ford Head Gasket 4.6L DOHC & SOHC

Name: Ford Head Gasket 4.6L DOHC & SOHC
Brand: COMETIC GASKETS
SKU: 245-C5118-075
Price: 171.93 USD
Availability: InStock

^$171⁹³

Ships on 09/10/2026

Lowest Price Guarantee

Ford 4.6L/5.4L

4.6L DOHC & SOHC
5.4L SOHC
Left Side
Bore: 92mm (3.62")
Compressed Thickness: .075"

Cometic Gaskets 245-C5118-075 Features:
Ford 4.6/5.4L Modular V8 .075" MLS Cylinder Head Gasket, 92mm Bore, LHS

Cometic Multilayer Steel (MLS) Gaskets are designed to provide the best possible seal for naturally-aspirated, boosted, or nitrous-fed engines. These head gaskets are made from 3 to 5 layers of spring stainless steel, offering a stronger base material than standard cylinder head gaskets. Outer layers are Viton-coated to create a superior seal not available with other steel or copper gaskets. Sold individually.

Features:

Spring stainless steel
Reduced bore distortion
Excellent rebound characteristics and corrosion resistance
Viton rubber coating (.001'' thick) is bonded to outer layer of gaskets
Withstands extreme cylinder pressures without machining for installation of locking wire

Installation Notes:

Not designed for use on engines with O-rings or receiver grooves
Always refer to the fastener manufacturer to determine accurate torque values
A surface finish of 50 RA (roughness average) or finer is recommended for proper gasket seal
Cometic Cylinder Head Gaskets go on dry because they're coated with a sealant (adding another sealer can hinder gasket performance)

Part TypeHead Gasket

Product LineCometic Ford 4.6/5.0/5.4L Cylinder Head Gaskets

BrandCOMETIC GASKETS

Package Height1.0

Package Width9.0

Package Length23.0

Weight1.21 PG

Part CategoryPerformance Parts

Vendor Part NumberC5118-075

Package Qty1

Package TypeEA

No Questions

No Reviews

Some parts are not legal for use in California or other states with similar laws / regulations
