Vehicle Info NeededCOMETIC GASKETSPART NUMBER: 245-C5134-030

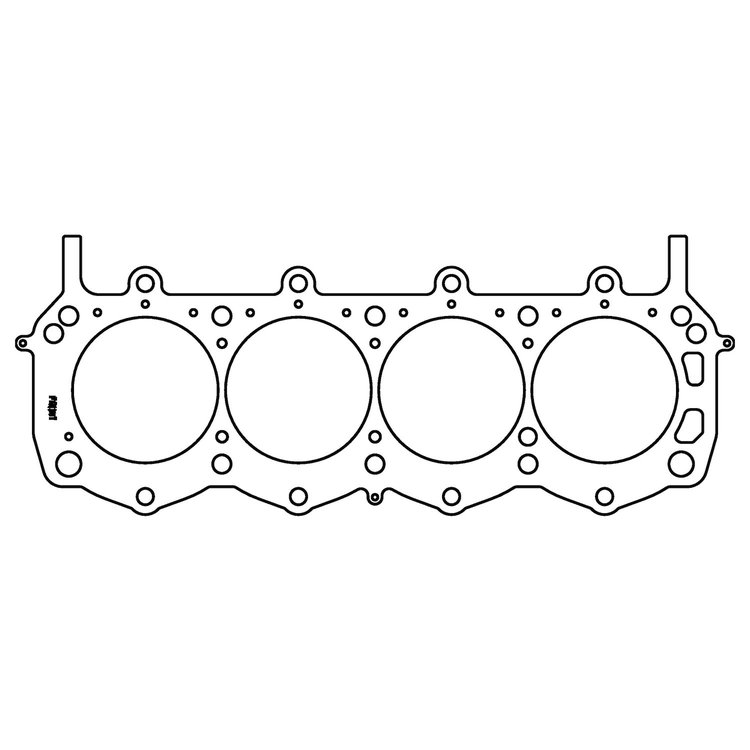

Ford Small-Block Head Gasket Man O" War 6 Bolt 10° Head
$9654
Ships on 09/14/2026
Lowest Price GuaranteeFord World Products Man O'War Small Block
- Ford Small-Block Head Gasket
- Man O' War 6 Bolt 10° Head
- Bore: 4.155"
- Compressed Thickness: .030"
Cometic Gaskets 245-C5134-030 Features:
Ford SB V8 World Products Man O'War/Dart Iron Eagle .030" MLS Cylinder Head Gasket, 4.155" Bore, 6 Bolt, 10 Degree Heads
Cometic Multi-Layer Steel MLS gaskets are designed to give you the best possible seal for your naturally aspirated, boosted or nitrous fed engine. The head gaskets are made from three to five layers of spring stainless steel, offering you a stronger base material than standard head gaskets. The outer layers are Viton coated stainless steel providing a superior seal not available with other steel or copper gaskets. The gaskets offer excellent rebound characteristics and are made to resist corrosives. MLS head gaskets reduce bore distortion but still can withstand extreme cylinder pressures. Sold individually.
Show More
Features
- Made from Stainless Spring Steel to offer an extremely strong corrosion resistant head gasket
- Each MLS head gasket is coated with a .001" thick Viton rubber that is bonded to the outer stainless steel layers
- Designed to withstand serious cylinder pressures without requiring machining for the installation of a locking wire.
Installation Notes:
- A surface finish of 50 RA (roughness average) or finer is recommended for proper gasket seal.
- Gaskets are not designed to be used on engines with o-rings or receiver grooves.
- Always refer to the manufacturer of the fastener to determine accurate torque values.
- Cometic head gaskets go on dry because they are coated with a sealant.
- Adding an additional sealer can hinder the performance of an MLS head gasket.
Part TypeHead Gasket
Product LineCometic World Products Man O'War Ford Head Gaskets
BrandCOMETIC GASKETS
Package Height0.3
Package Width9.9
Package Length24.1
Weight1.01 PG
Part CategoryPerformance Parts
Vendor Part NumberC5134-030
Package Qty1
Package TypeEA
