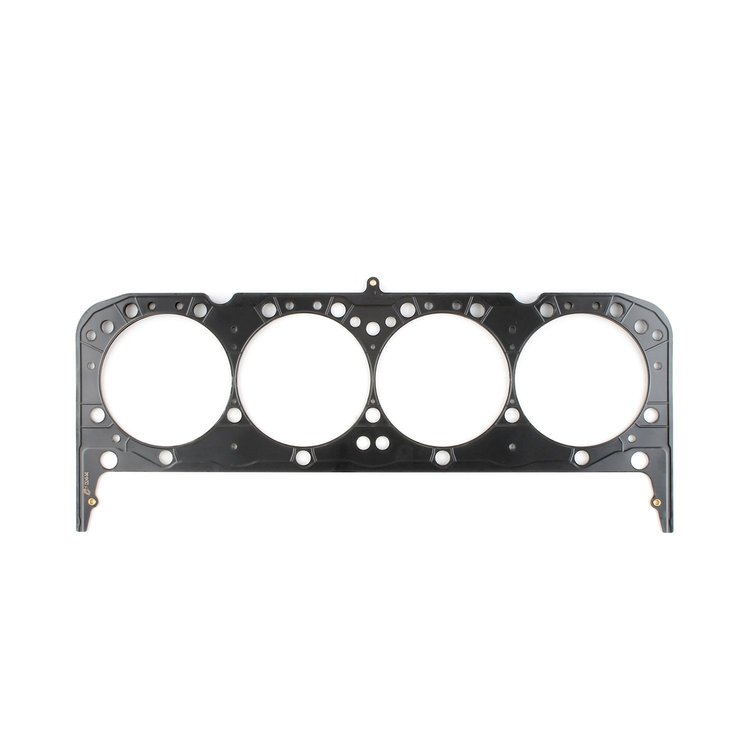

Small-Block Chevy Head Gasket 265-400 18° & 23° Heads
InfoVehicle Info Needed
COMETIC GASKETSPART NUMBER: 245-C5249-060

Small-Block Chevy Head Gasket 265-400 18° & 23° Heads

$12830
ShippingShips on 12/02/2026
Lowest PriceLowest Price Guarantee

Chevrolet Small-Block
    Small-Block Chevy Head Gasket
  • 265-400 18° & 23° Heads
  • Bore: 4.200"
  • Compressed Thickness: .060"
  • Sold Individually

    Cometic Gaskets 245-C5249-060 Features:

    Chevrolet Gen-1 Small Block V8 .060" MLS Cylinder Head Gasket, 4.200" Bore, 18/23 Degree Head, Round Bore, With Steam Holes

Cometic Multilayer Steel (MLS) Gaskets are designed to provide the best possible seal for naturally-aspirated, boosted, or nitrous-fed engines. The head gaskets are made from 3-5 layers of spring stainless steel, offering a stronger base material than standard cylinder head gaskets. The outer layers are Viton-coated stainless steel to create a superior seal not available with other steel or copper gaskets. The gaskets have excellent rebound characteristics and are made to resist corrosive substances. MLS head gaskets reduce bore distortion but still withstand extreme cylinder pressures. Sold individually.

Show More

Features

  • Made from Stainless Spring Steel to offer an extremely strong corrosion-resistant cylinder head gasket
  • Each MLS head gasket is coated with a .001" thick Viton rubber that is bonded to the outer stainless steel layers
  • Designed to withstand serious cylinder pressures without requiring machining for the installation of a locking wire Installation Notes
  • Gaskets are not designed to be used on engines with O-rings or receiver grooves
  • Always refer to the manufacturer of the fastener to determine accurate torque values
  • A surface finish of 50 RA (roughness average) or finer is recommended for proper gasket seal
  • Cometic Cylinder Head Gaskets go on dry because they're coated with a sealant (adding another sealer can hinder gasket performance)
Part TypeHead Gasket
Product LineCometic Small Block Chevy Cylinder Head Gaskets
BrandCOMETIC GASKETS
Package Height0.6
Package Width9.8
Package Length24.0
Weight1.08 PG
Part CategoryPerformance Parts
Vendor Part NumberC5249-060
Package Qty1
Package TypeEA
Please click here to download the instructions PDF file
