Vehicle Info NeededCOMETIC GASKETSPART NUMBER: 245-C5433-045

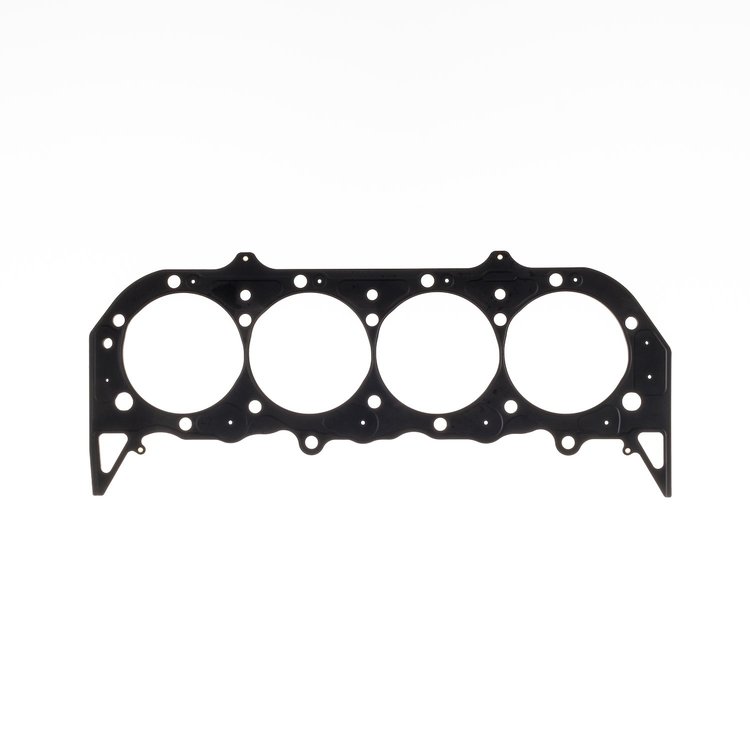

Big-Block Chevy Head Gasket Brodix Big Duke/Big Brodie
$9506
Ships on 09/15/2026
Lowest Price GuaranteeChevrolet Big-Block Brodix Big Duke/Big Brodie
- Big-Block Chevy Head Gasket
- Brodix Big Duke/Big Brodie
- Bore: 4.570"
- Compressed Thickness: .045"
Cometic Gaskets 245-C5433-045 Features:
Chevrolet Mark-IV, GM Gen-V/VI Big Block V8 .045" MLS Cylinder Head Gasket, 4.570" Bore, For Aftermarket Heads - Undersized Water Ports to Allow for Customization
Cometic Multilayer Steel (MLS) Gaskets are designed to provide the best possible seal for naturally-aspirated, boosted, or nitrous-fed engines. The head gaskets are made from 3-5 layers of spring stainless steel, offering a stronger base material than standard cylinder head gaskets. Viton-coated stainless steel outer layers create a superior seal not available with other steel or copper gaskets. MLS Gaskets reduce bore distortion, resist corrosive substances, and have excellent rebound qualities. Sold individually.
Show More
Features
- Made from stainless spring steel for exceptional corrosion resistance
- Designed to withstand serious cylinder pressures without machining for installation of locking wire
- MLS Cylinder Head Gaskets are coated with .001" thick Viton rubber that's bonded to the outer stainless steel layers Installation Notes
- Not designed for use on engines with O-rings or receiver grooves
- Always refer to the fastener manufacturer to determine accurate torque values
- A surface finish of 50 RA (roughness average) or finer is recommended for proper gasket seal
- Cometic Cylinder Head Gaskets go on dry because they're coated with a sealant (adding another sealer can hinder gasket performance)
Part TypeHead Gasket
Product LineCometic Big Block Chevy Cylinder Head Gaskets
BrandCOMETIC GASKETS
Package Height1.0
Package Width12.0
Package Length23.0
Weight1.08 PG
Part CategoryPerformance Parts
Vendor Part NumberC5433-045
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
