COMETIC GASKETSPART NUMBER: 245-C5503-051

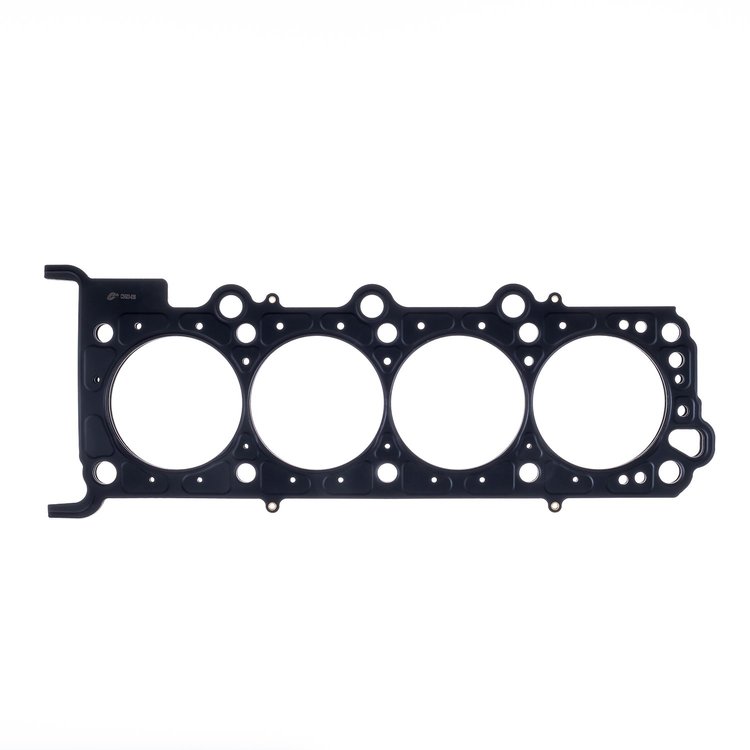

Ford Head Gasket 4.6L DOHC & SOHC
$13938
2 left in stockFord 4.6L/5.4L
- Ford Head Gasket
- 4.6L DOHC & SOHC
- 5.4L SOHC
- Right Side
- Bore: 94mm (3.700")
- Compressed Thickness: .051"
Cometic Gaskets 245-C5503-051 Features:
Ford 4.6/5.4L Modular V8 .051" MLS Cylinder Head Gasket, 94mm Bore, RHS
Cometic Multilayer Steel (MLS) Gaskets are designed to provide the best possible seal for naturally-aspirated, boosted, or nitrous-fed engines. These head gaskets are made from 3 to 5 layers of spring stainless steel, offering a stronger base material than standard cylinder head gaskets. Outer layers are Viton-coated to create a superior seal not available with other steel or copper gaskets. Sold individually.
Show More
Features:
- Spring stainless steel
- Reduced bore distortion
- Excellent rebound characteristics and corrosion resistance
- Viton rubber coating (.001'' thick) is bonded to outer layer of gaskets
- Withstands extreme cylinder pressures without machining for installation of locking wire
Installation Notes:
- Not designed for use on engines with O-rings or receiver grooves
- Always refer to the fastener manufacturer to determine accurate torque values
- A surface finish of 50 RA (roughness average) or finer is recommended for proper gasket seal
- Cometic Cylinder Head Gaskets go on dry because they're coated with a sealant (adding another sealer can hinder gasket performance)
Part TypeHead Gasket
Product LineCometic Ford 4.6/5.0/5.4L Cylinder Head Gaskets
BrandCOMETIC GASKETS
Package Height0.15
Package Width9.5
Package Length24.0
Weight1.02 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part NumberC5503-051
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
