Vehicle Info NeededCOMETIC GASKETSPART NUMBER: 245-C5510-040

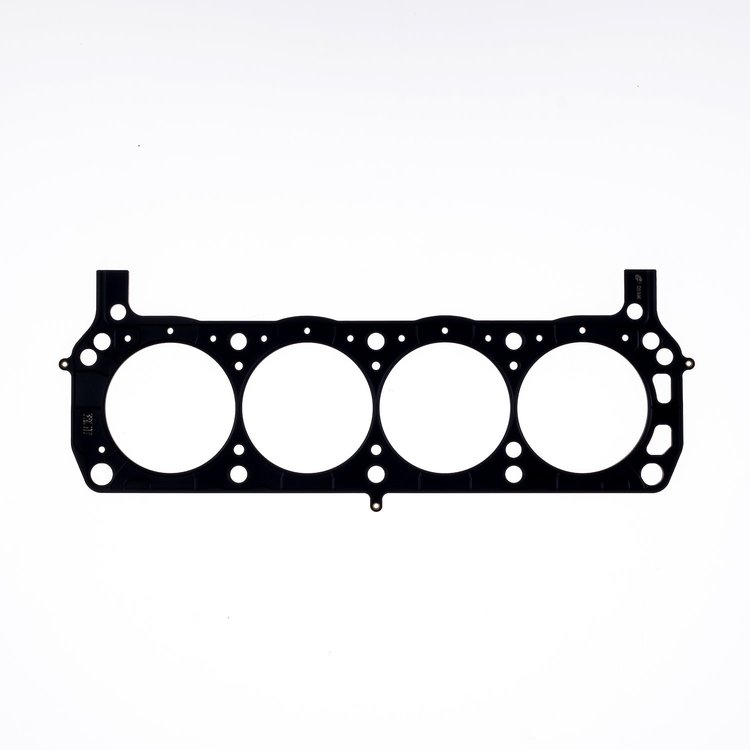

Small-Block Ford Head Gasket 302, 351
$8795
Ships on 09/09/2026
Lowest Price GuaranteeFord Small-Block 289-351W
- Small-Block Ford Head Gasket
- 302, 351
- Bore: 4.125" Round
- Compressed Thickness: .040"
Cometic Gaskets 245-C5510-040 Features:
Ford Windsor V8 .040" MLS Cylinder Head Gasket, 4.125" Bore, NON-SVO
Cometic Multilayer Steel (MLS) Gaskets are designed to provide the best possible seal for naturally-aspirated, boosted, or nitrous-fed engines. The head gaskets are made from 3-5 layers of spring stainless steel, offering a stronger base material than standard cylinder head gaskets. Viton-coated stainless steel outer layers create a superior seal not available with other steel or copper gaskets. MLS Gaskets reduce bore distortion, resist corrosive substances, and have excellent rebound qualities. Sold individually.
Show More
Features
- Made from stainless spring steel for exceptional corrosion resistance
- Designed to withstand extreme cylinder pressures without machining for installation of locking wire
- MLS Cylinder Head Gaskets are coated with .001" thick Viton rubber that's bonded to the outer stainless steel layers Installation Notes
- Not designed for use on engines with O-rings or receiver grooves
- Always refer to the fastener manufacturer to determine accurate torque values
- A surface finish of 50 RA (roughness average) or finer is recommended for proper gasket seal
- Cometic Cylinder Head Gaskets go on dry because they're coated with a sealant (adding another sealer can hinder gasket performance)
Part TypeHead Gasket
Product LineCometic Ford 302/351W Cylinder Head Gaskets
BrandCOMETIC GASKETS
Package Height0.5
Package Width9.7
Package Length23.8
Weight0.91 PG
Part CategoryPerformance Parts
Vendor Part NumberC5510-040
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
