Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Chrysler R3 & R4
- Chrysler R3 Head Gasket
- R3 Block - W2 Heads
- Bore: 4.100"
- Compressed Thickness: .045
Cometic Gaskets 245-C5567-045 Features:

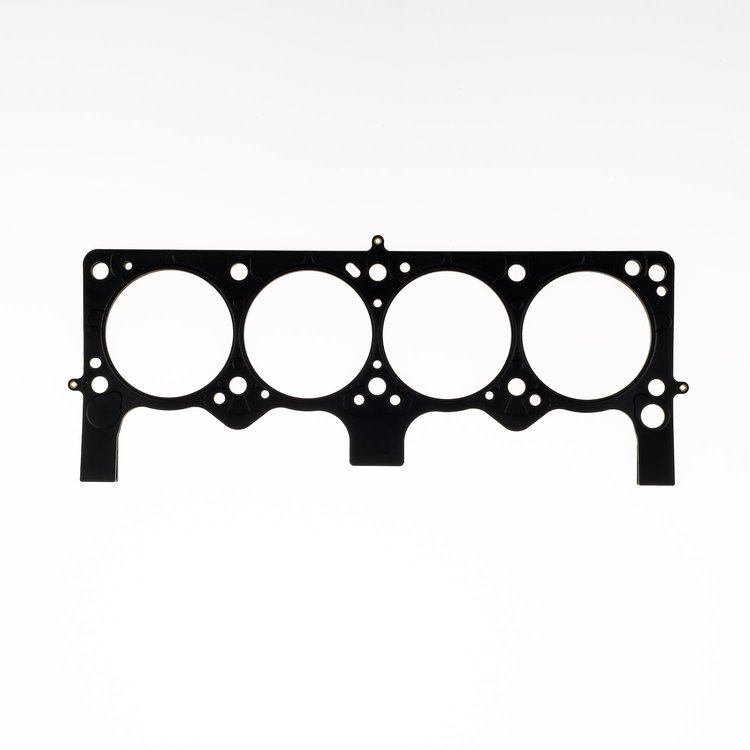

Chrysler R3 Race Block .045" MLS Cylinder Head Gasket, 4.100" Bore, W2 Heads
Cometic Multi-Layer Steel (MLS) Gaskets are designed to provide the best possible seal for naturally-aspirated, boosted, or nitrous-fed engines. The head gaskets are made from three to five layers of spring stainless steel, offering a stronger base material than standard head gaskets. Viton-coated outer layers create a superior seal not available with other steel or copper gaskets. MLS Cylinder Head Gaskets reduce bore distortion, resist corrosive substances, and have excellent rebound qualities. Sold individually.
Show More
Features:
- Made from spring stainless steel for strong corrosion resistance
- Each MLS head gasket is coated with a .001" thick Viton rubber that is bonded to the outer stainless steel layers
- Designed to withstand extreme cylinder pressures without requiring machining for the installation of a locking wire
Installation Notes:
- A surface finish of 50 RA (roughness average) or finer is recommended for proper gasket seal.
- Gaskets are not designed to be used on engines with O-rings or receiver grooves.
- Always refer to the manufacturer of the fastener to determine accurate torque values.
- Cometic head gaskets go on dry because they are coated with a sealant.
- Adding an additional sealer can hinder the performance of an MLS head gasket.
Part TypeHead Gasket
Product LineCometic Mopar R3/R4 Block Cylinder Head Gaskets
BrandCOMETIC GASKETS
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part NumberC5567-045
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
