Vehicle Info NeededCOMETIC GASKETSPART NUMBER: 245-C5637-060

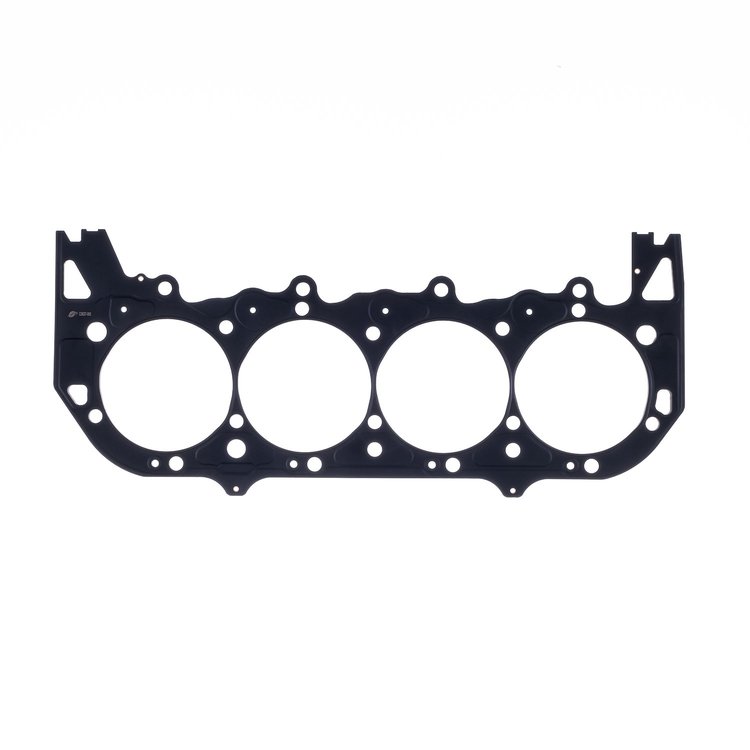

Big-Block Chevy Head Gasket Mercury Gen IV, V, VI 4 Bolt Intake Side
$13096
Ships on 09/24/2026
Lowest Price GuaranteeChevrolet Big-Block Mercury Gen IV/V/VI
- Big-Block Chevy Head Gasket
- Mercury Gen IV, V, VI 4 Bolt Intake Side
- Bore: 4.600"
- Compressed Thickness: .060"
- Compressed Volume: 16.34cc
Cometic Gaskets 245-C5637-060 Features:
GM/Mercury Marine Big Block V8 Gen-IV/V/VI .060" MLS Cylinder Head Gasket, W/4 Bolts in Lifter Valley, 4.600" Bore
Cometic Multilayer Steel (MLS) Gaskets are designed to provide the best possible seal, even on engines used in marine applications. These head gaskets are made from 3 to 5 layers of spring stainless steel, offering a stronger base material than standard cylinder head gaskets. Viton-coated outer layers create a superior seal, and the gaskets have excellent rebound characteristics. MLS Cylinder Head Gaskets reduce bore distortion but can still endure extreme cylinder pressures. Sold individually.
Show More
Features:
- Made from stainless spring steel
- Exceptional resistance to corrosive substances
- Viton rubber coating (.001'' thick) is bonded to outer layer of gaskets
- Designed to withstand serious cylinder pressures without machining for installation of locking wire
Installation Notes
- Not designed for use on engines with O-rings or receiver grooves
- Always refer to the fastener manufacturer to determine accurate torque values
- A surface finish of 50 RA (roughness average) or finer is recommended for proper gasket seal
- Cometic Cylinder Head Gaskets go on dry because they're coated with a sealant (adding another sealer can hinder gasket performance)
Part TypeHead Gasket
Product LineCometic Big Block Chevy Marine Cylinder Head Gaskets
BrandCOMETIC GASKETS
Package Height1.0
Package Width9.5
Package Length24.0
Weight1.5 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part NumberC5637-060
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
