Vehicle Info NeededCOMETIC GASKETSPART NUMBER: 245-C5768-040

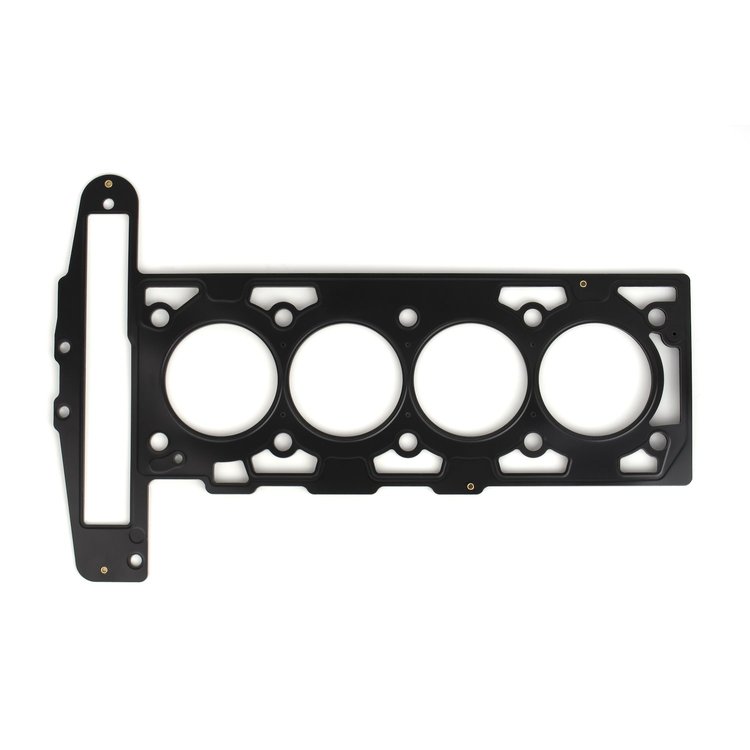

Cylinder Head Gasket GM Ecotec 2.2L L61/L42
$10137
Ships on 09/14/2026
Lowest Price GuaranteeEcotec 2.2L L61/L4287mm Bore
- Cylinder Head Gasket
- GM Ecotec 2.2L L61/L42
- Bore: 87mm
- Compressed Thickness: .040"
- Compressed Volume: 6.04cc
Cometic Gaskets 245-C5768-040 Features:
GM L42/L61 Gen-1/2 ECOTEC .040" MLS Cylinder Head Gasket, 87mm Bore
Cometic Multilayer Steel (MLS) Gaskets are designed to provide the best possible seal for naturally-aspirated, boosted, or nitrous-fed engines. These head gaskets are made from 3 to 5 layers of spring stainless steel, offering a stronger base material than standard cylinder head gaskets. Viton-coated outer layers create a superior seal not available with other steel or copper gaskets. Cometic MLS Cylinder Head Gaskets reduce bore distortion but can still endure extreme cylinder pressures. Sold individually.
Show More
Features:
- Made from stainless spring steel
- Excellent rebound characteristics and corrosion resistance
- Viton rubber coating (.001'' thick) is bonded to outer layer of gaskets
- Designed to withstand serious cylinder pressures without machining for installation of locking wire
Installation Notes:
- Not designed for use on engines with O-rings or receiver grooves
- Always refer to the fastener manufacturer to determine accurate torque values
- A surface finish of 50 RA (roughness average) or finer is recommended for proper gasket seal
- Cometic Cylinder Head Gaskets go on dry because they're coated with a sealant (adding another sealer can hinder gasket performance)
Part TypeHead Gasket
Product LineCometic 4-Cylinder Chevy Cylinder Head Gaskets
BrandCOMETIC GASKETS
Package Height0.01
Package Width13.5
Package Length23.0
Weight1.075 PG
Part CategoryPerformance Parts
Vendor Part NumberC5768-040
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
