Vehicle Info NeededCOMETIC GASKETSPART NUMBER: 245-C5856-040

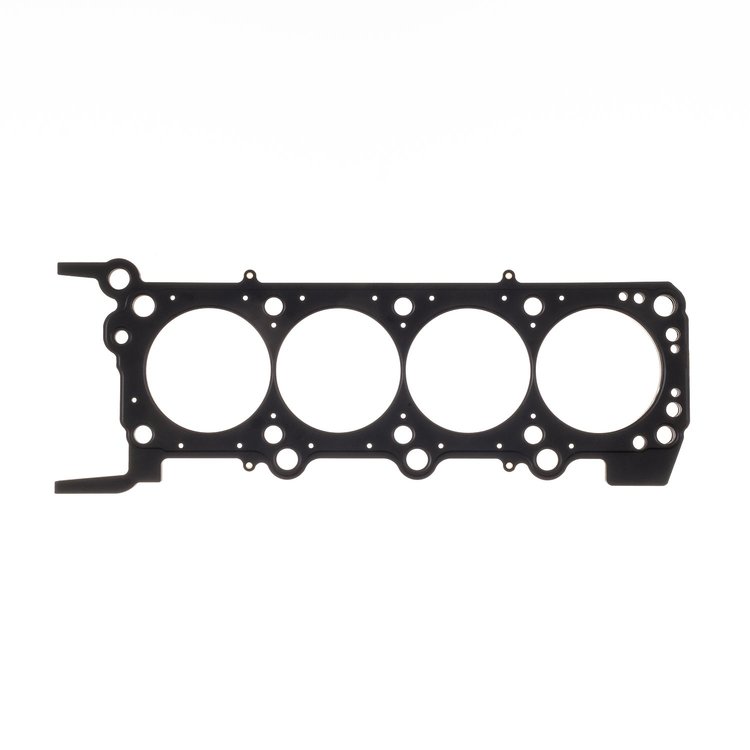

Ford Head Gasket 4.6L DOHC Darton Sleeve
$13274
Ships on 09/11/2026
Lowest Price GuaranteeFord 4.6L/5.4L
- Ford Head Gasket
- 4.6L DOHC Darton Sleeve
- Left Side Solid Sleeve
- Bore: 95.25mm
- Compressed Thickness: .040"
Cometic Gaskets 245-C5856-040 Features:
Ford 4.6L Modular V8 .040" MLS Cylinder Head Gasket, 95.25mm Bore, DOHC, Darton Solid Sleeve, LHS
Cometic Multilayer Steel (MLS) Gaskets are designed to provide the best possible seal for naturally-aspirated, boosted, or nitrous-fed engines. These head gaskets are made from 3 to 5 layers of spring stainless steel, offering a stronger base material than standard cylinder head gaskets. Outer layers are Viton-coated to create a superior seal not available with other steel or copper gaskets. Sold individually.
Show More
Features:
- Spring stainless steel
- Reduced bore distortion
- Excellent rebound characteristics and corrosion resistance
- Viton rubber coating (.001'' thick) is bonded to outer layer of gaskets
- Withstands extreme cylinder pressures without machining for installation of locking wire
Installation Notes:
- Not designed for use on engines with O-rings or receiver grooves
- Always refer to the fastener manufacturer to determine accurate torque values
- A surface finish of 50 RA (roughness average) or finer is recommended for proper gasket seal
- Cometic Cylinder Head Gaskets go on dry because they're coated with a sealant (adding another sealer can hinder gasket performance)
Part TypeHead Gasket
Product LineCometic Ford 4.6/5.0/5.4L Cylinder Head Gaskets
BrandCOMETIC GASKETS
Package Height0.3
Package Width11.5
Package Length22.9
Weight0.8 PG
Part CategoryPerformance Parts
Vendor Part NumberC5856-040
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
