Vehicle Info NeededCOMETIC GASKETSPART NUMBER: 245-C5969-030

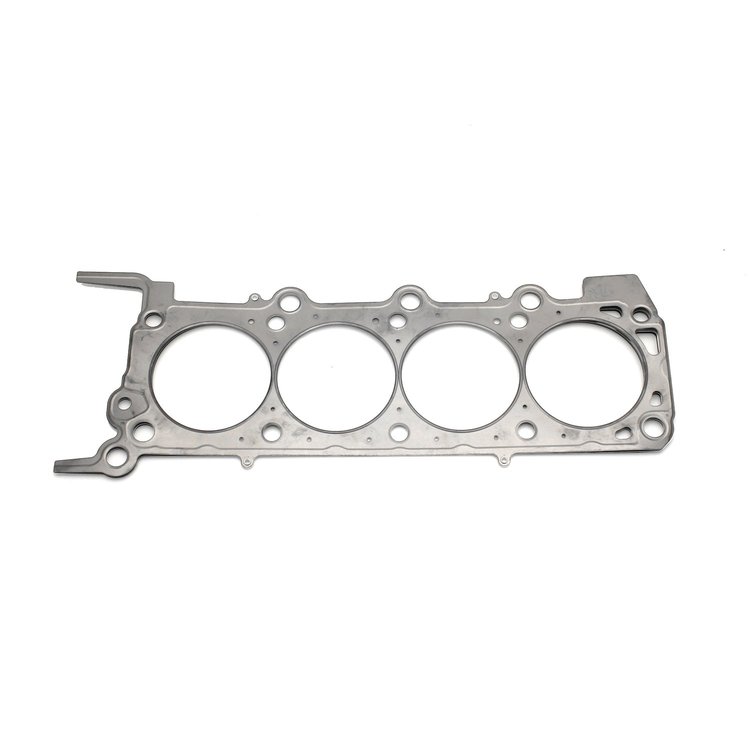

Ford Head Gasket 2005-Up 4.6L 3V Left Side
$13274
Ships on 11/04/2026
Lowest Price GuaranteeFord 4.6L/5.4L
- Ford Head Gasket
- 2005-Up 4.6L 3V Left Side
- Bore: 94mm
- Compressed Thickness: .030"
Cometic Gaskets 245-C5969-030 Features:
Ford 4.6L Modular V8 .030" MLS Cylinder Head Gasket, 94mm Bore, SOHC, 3-Valve, LHS
Cometic Multilayer Steel (MLS) Gaskets are designed to provide the best possible seal for naturally-aspirated, boosted, or nitrous-fed engines. These head gaskets are made from 3 to 5 layers of spring stainless steel, offering a stronger base material than standard cylinder head gaskets. Outer layers are Viton-coated to create a superior seal not available with other steel or copper gaskets. Sold individually.
Show More
Features:
- Spring stainless steel
- Reduced bore distortion
- Excellent rebound characteristics and corrosion resistance
- Viton rubber coating (.001'' thick) is bonded to outer layer of gaskets
- Withstands extreme cylinder pressures without machining for installation of locking wire
Installation Notes:
- Not designed for use on engines with O-rings or receiver grooves
- Always refer to the fastener manufacturer to determine accurate torque values
- A surface finish of 50 RA (roughness average) or finer is recommended for proper gasket seal
- Cometic Cylinder Head Gaskets go on dry because they're coated with a sealant (adding another sealer can hinder gasket performance)
Part TypeHead Gasket
Product LineCometic Ford 4.6/5.0/5.4L Cylinder Head Gaskets
BrandCOMETIC GASKETS
Package Height0.3
Package Width9.8
Package Length24.0
Weight0.78 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part NumberC5969-030
Package Qty1
Package TypeEA
