Vehicle Info NeededCOMP CAMSPART NUMBER: 249-09-412-8

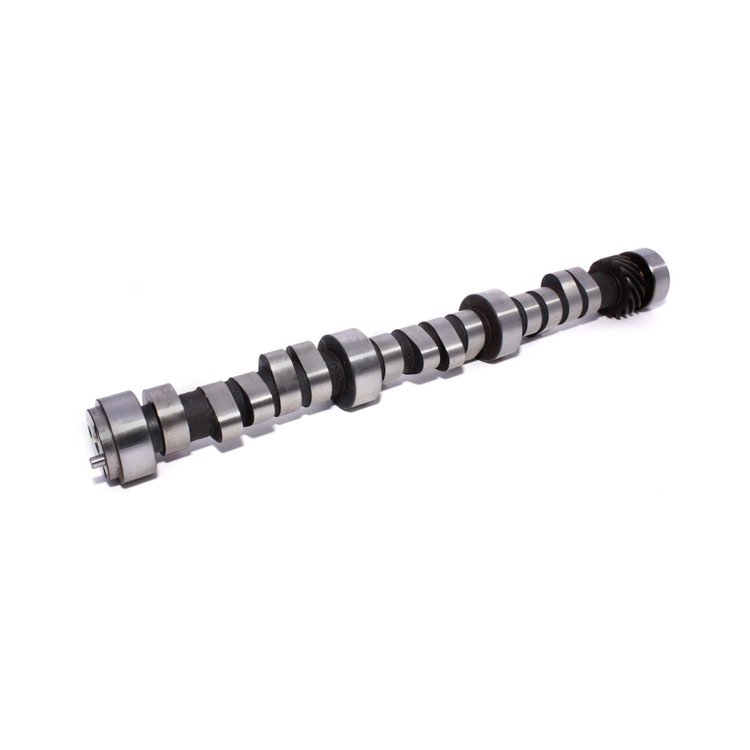

Magnum Hydraulic Roller Camshaft Chevy 4.3L V6 1980-97 Lift: .500"/.500"
$57795
Ships on Sep 03, 2026
Lowest Price GuaranteeChevrolet 4.3 Liter 262ci 90° 6 Cyl. 1980-1997Computer Controlled Vehicles (Non- Balance Shaft)
- Magnum Hydraulic Roller Camshaft
- Lift: .500"/.500"
- Duration: 260°/266°
- Lobe Separation Angle: 112°
- RPM Range: 1300-4500
- Works with stock computers and fuel injection
- Good low end torque and mileage
- For Computer Controlled Vehicles
90 Degree V6; 4.3: 262; Chevrolet 262; Chevrolet 4.3L; LB1; LB4; L35; LF6; S10; Blazer; S10 Blazer; S15; Sonoma; GMC; Safari; Astro Van; Safari; GMC Safari; Silverado
Works with stock computer and fuel injection. Good low end torque and mileage.
Chevy 4.3L V6 1980-97
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.75
Package Width2.87
Package Length24.5
Weight7.0 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)210
Cam StyleHydraulic roller tappet
Grind NumberC6 260AH-R12
Exh. Duration Advertised (Deg)266
Engine Make/SizeChevy 262
Intake Valve Lift With Factory Rocker Arm Ratio (I0.5
Int. Duration @ .050 In. (Deg)206
Basic Operating Rpm Range1,200-4,500
Intake Valve Lift0.5 in (12.7 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)260
Lobe Separation (Deg)112
Rpm Range1200-4500
Advertised Duration260 int./266 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.5
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.500 int./0.500 exh.
QuantitySold individually
Exhaust Valve Lift0.5 in (12.7 mm)
Advertised Intake Duration260
Intake Duration At 050 Inch Lift206
Exhaust Duration At 050 Inch Lift210
Advertised Exhaust Duration266
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift206 int./210 exh.
Valve Springs RequiredYes
Vendor Part Number09-412-8
Package Qty1
Package TypeEA
