Vehicle Info NeededCOMP CAMSPART NUMBER: 249-986-12

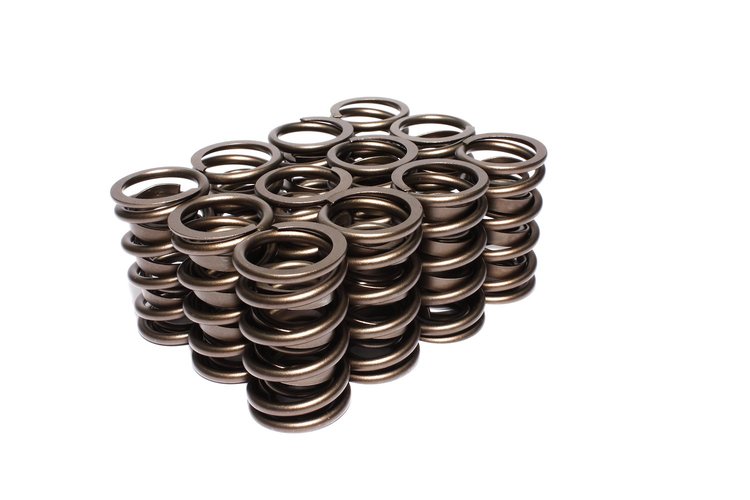

Dual Valve Springs Outer Spring O.D.: 1.430 in.
$9595
Ships on Sep 07, 2026
Lowest Price Guarantee1.430 in. Outside Diameter
- Dual Valve Springs
- Outer Spring O.D.: 1.430 in.
- Outer Spring I.D.: 1.070 in.
- Inner Spring I.D.: 0.697 in.
- Seat Load: 132lbs
- Coil Bind: 1.150 in.
- Spring Rate: 322lbs/in.
- With damper
- Set of 12
- Dual Valve Spring
- Coiled On the Most Advanced CNC Machines
- 1 Year Limited Warranty
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
Part TypeValve Spring Kit
BrandCOMP CAMS
Package Height2.9
Package Width3.7
Package Length13.6
Weight3.6 PG
Part CategoryPerformance Parts
CoatedNo
Coil Bind Height1.15 in (29.21 mm)
Damper Spring IncludedYes
Spring Rate322 lbs./in.
PositionN/A
Open Height1.25 in (31.8 mm)
Open Pressure (Lbs.)280
Installed Pressure (Lbs.)132
QuantitySold as a set of 12
Installed Height1.75 in (44.45 mm)
Inside Diameter Of Inner Spring0.697 in (17.704 mm)
Valve Spring StyleStandard
Outside Diameter Of Outer Spring1.43 in (36.3 mm)
Inside Diameter Of Outer Spring1.07 in (27.178 mm)
Inside Diameter0.697 in (17.704 mm)
Spring TypeDouble
Spring Rate (Lbs./In.)296
Part FitmentSemi Universal
Outside Diameter1.43 in (36.3 mm)
Number Of Springs Per ValveDual
Camshaft TypeHydraulic
Vendor Part Number986-12
Package Qty1
Package TypeEA
