Vehicle Info NeededCOMP CAMSPART NUMBER: 249-10-210-4

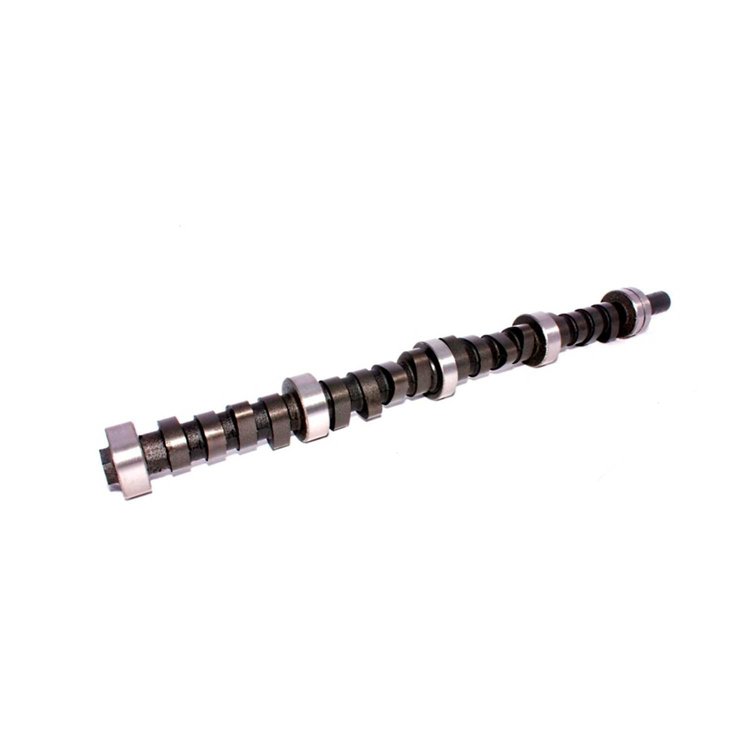

Magnum 292H Hydraulic Flat Tappet Camshaft Lift: .518" /.518" Duration: 292°/292° RPM Range: 2500-6500
$30995
Ships on Sep 03, 2026
Lowest Price GuaranteeAmerican Motors 290-401ci 1966-1991
- Magnum 292H Hydraulic Flat Tappet Camshaft
- Cams Are Very Aggressive
- Designed For Performance Oriented Vehicles
- Deliver More Power Than Standard Camshafts
- 1 Year Limited Warranty
AMC; Jeep; 4.0; 290; XJ; Cherokee; Wagoneer; Comanche; Grand Wagoneer; Wrangler; JK; Rambler; Eagle; ZJ; Chrysler; AM General; American Motors; 327; 390; 304; 327; 343; 360; 5.9; Rebel; Nash; AMX; Javelin
Street/strip cam for 360 and up. Use 10:1 compression with 3000+ converter and low gears. Very rough idle.
Lift: .518''/.518"
Duration: 292°/292°
RPM Range: 2500-6500
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.75
Package Width2.87
Package Length24.5
Weight10.4 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)244
Cam StyleHydraulic flat tappet
Grind NumberA 292H-10
Exh. Duration Advertised (Deg)292
Engine Make/SizeAMC 290-401
Intake Valve Lift With Factory Rocker Arm Ratio (I0.518
Int. Duration @ .050 In. (Deg)244
Basic Operating Rpm Range2,500-6,500
Intake Valve Lift0.518 in (13.157 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)292
Lobe Separation (Deg)110
Rpm Range2500-6500
Advertised Duration292 int./292 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.518
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.518 int./0.518 exh.
QuantitySold individually
Exhaust Valve Lift0.518 in (13.157 mm)
Advertised Intake Duration292
Intake Duration At 050 Inch Lift244
Exhaust Duration At 050 Inch Lift244
Advertised Exhaust Duration292
Lifter TypeHydraulic Flat Tappet
Duration At 050 Inch Lift244 int./244 exh.
Valve Springs RequiredYes
Vendor Part Number10-210-4
Package Qty1
Package TypeEA
