Positive Stop PTFE Seals Guide Size: .530"
InfoVehicle Info Needed
COMP CAMSPART NUMBER: 249-505-16

Positive Stop PTFE Seals Guide Size: .530"

$3595
ShippingShips on Sep 02, 2026
Lowest PriceLowest Price Guarantee

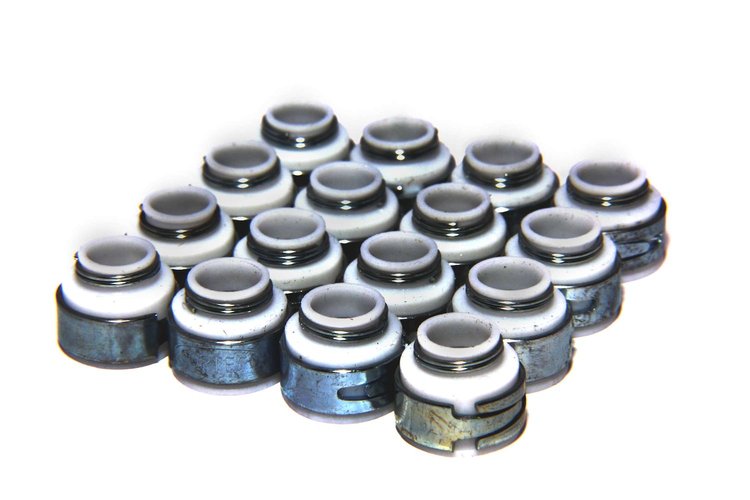

Positive Stop PTFE Seals
    Positive Stop PTFE Seals
  • Guide Size: .530''
  • Valve Size: 3/8''
  • 16/pkg

  • 1 Year Limited Warranty

    PTFE; Seal; Valve Guide; Valve Guide Seal; Valve Stem Seal; Valve Seals; 5/16" Valve Seals; 11/32" Valve Seals; .530" Valve Seal; Umbrella; O-Ring Seals; Viton Seals; 8 mm Seals


    COMP's Positive Stop PTFE valve seals offer more clearance for dual springs with better sealing than o-ring or umbrella seals. These 505 seals have a .630" outer diameter and fit applications with 3/8" valves and .530" OD valve guides.

Comp Cams offers a complete line of valve stem seals, from the stock GM O-ring to the positive stop PTFE seal. These seals are a must to keep unwanted oil from entering the combustion chamber through the clearance in the valve guides. O-ring seals use the standard retainer and oil splash shield. Umbrella seals are normally used when a larger-than-stock diameter spring is used; in the case of a double spring, positive stop PTFE seals are used. There is also a smaller diameter Viton seal available for triple spring applications. O-rings and umbrella seals require no machining, but PTFE seals require the heads to be disassembled so the top guides can be machined with a special .530" diameter cutter. Whenever you're planning an overhaul or cam change, don't forget the valve seals!

Show More

Features:

  • Excellent Sealing Properties
  • O-Ring & Umbrella Seals Require No Machining
Part TypeValve Stem Seal
Product LineComp Cams Valve Stem Seals
BrandCOMP CAMS
Package Height1.0
Package Width1.5
Package Length3.6
Weight0.1 PG
Part CategoryPerformance Parts
Valve Guide Diameter0.53 in (13.5 mm)
Valve Stem Seal TypePositive stop
Machine Work RequiredYes
Valve Stem Seal MaterialPTFE
QuantitySold as a set of 16
Valve Stem Diameter0.375 in (9.5 mm)
Diameter0.375 in (9.525 mm)
Vendor Part Number505-16
Package Qty1
Package TypeEA
