Vehicle Info NeededCOMP CAMSPART NUMBER: 249-10-216-5

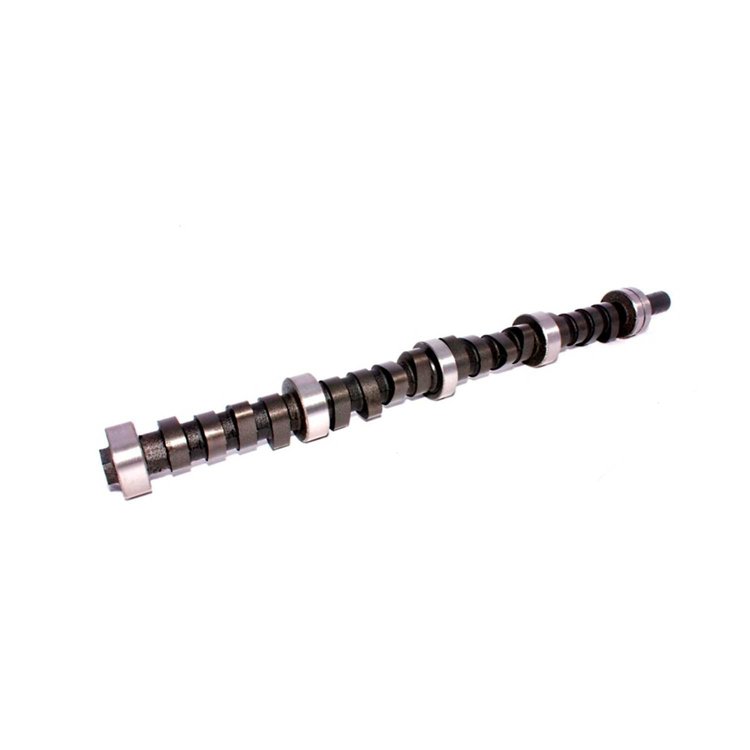

Xtreme Energy 274H Hydraulic Flat Tappet Camshaft Only Lift: .520"/.523" Duration: 274°/286° RPM Range: 2000-6000
$32595
1 left in stock
Ships Tomorrow
Lowest Price GuaranteeAMC 290-401ci 1966-1991
- Xtreme Energy 274H Hydraulic Flat Tappet Camshaft Only
Lift: .520"/.523"
Duration: 274°/286°
RPM Range: 2000-6000
Hydraulic-Very strong mid-range, torque & throttle response, 2200+ stall. Rough Idle.
AMC; Jeep; 4.0; 290; XJ; Cherokee; Wagoneer; Comanche; Grand Wagoneer; Wrangler; JK; Rambler; Eagle; ZJ; Chrysler; AM General; American Motors; 327; 390; 304; 327; 343; 360; 5.9; Rebel; Nash; AMX; Javelin
Very strong mid-range and throttle response, 2200+ stall. Rough idle.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.7
Package Width3.0
Package Length24.2
Weight10.4 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)236
Cam StyleHydraulic flat tappet
Grind NumberA8 XE274H10
Exh. Duration Advertised (Deg)286
Engine Make/SizeAMC 290-401
Intake Valve Lift With Factory Rocker Arm Ratio (I0.52
Int. Duration @ .050 In. (Deg)230
Basic Operating Rpm Range2,000-6,000
Intake Valve Lift0.52 in (13.208 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)274
Lobe Separation (Deg)110
Rpm Range2000-6000
Advertised Duration274 int./286 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.523
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.520 int./0.523 exh.
QuantitySold individually
Exhaust Valve Lift0.523 in (13.284 mm)
Advertised Intake Duration274
Intake Duration At 050 Inch Lift230
Exhaust Duration At 050 Inch Lift236
Advertised Exhaust Duration286
Lifter TypeHydraulic Roller
Duration At 050 Inch Lift230 int./236 exh.
Valve Springs RequiredYes
Vendor Part Number10-216-5
Package Qty1
Package TypeEA
